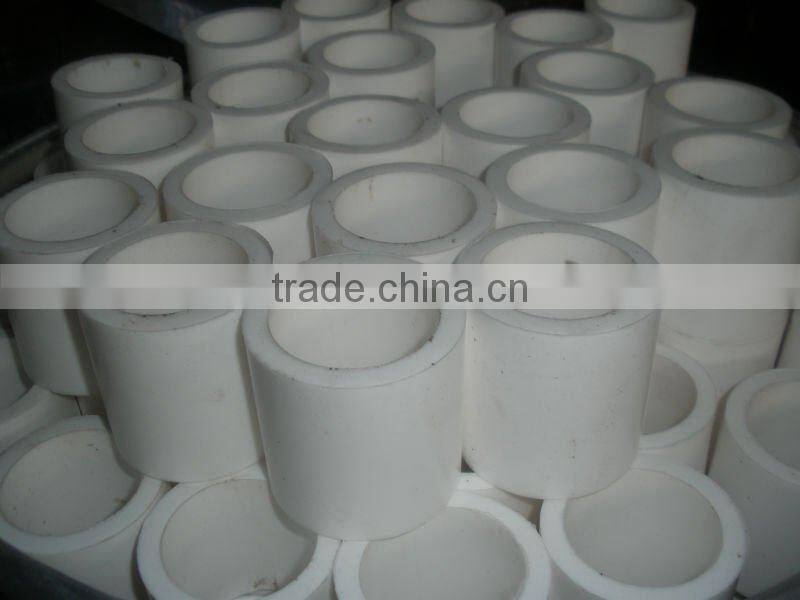

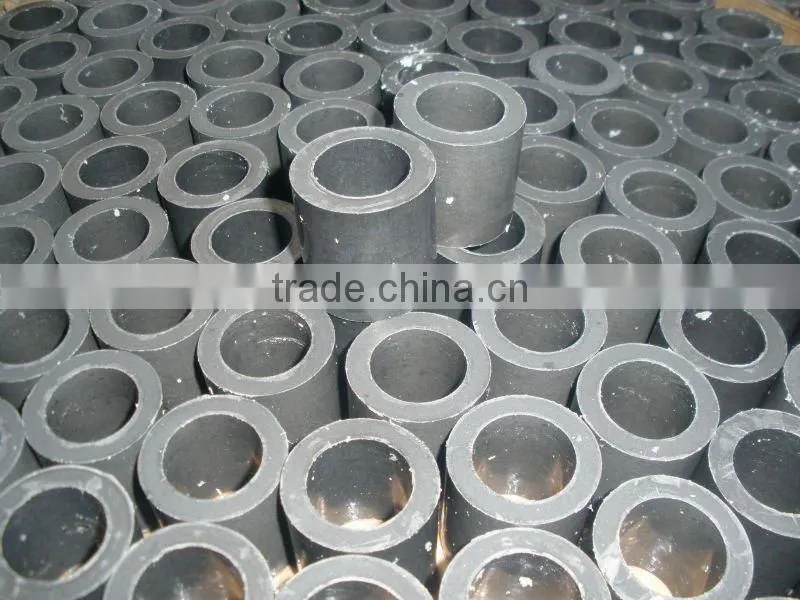

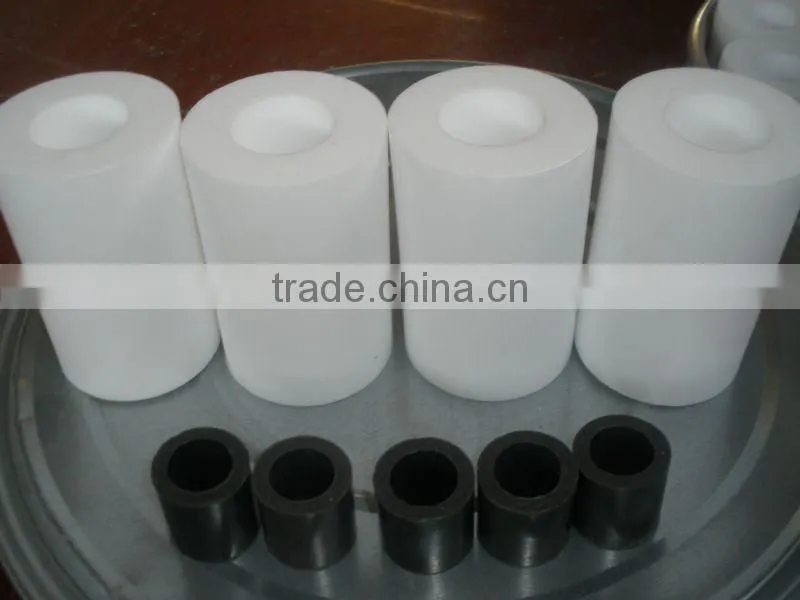

PTFE molded tube
1 Description
There are three types of PTFE tube: For a tube with outside diameter 1~25mm and thickness of wall 0.1~2.5mm, we choose imported polymerized PTFE resin and process it by pressing; For a pipe with outside diameter 25~200mm and thickness of wall 1.5~8mm, we choose suspended PTFE resin and process it by extruding; For a pipe with outside diameter 25~120mm and thickness of wall 5~500 mm, we process it by die pressing.
2 Features
- Very high working temperatures.
- Non-stick characteristics.
- Low friction surface
- Very high resistance to chemical and solvents.
- Very high electrical resistance.
- Bio-compatibility.
3 Specification
TYPES |
Specification |
||
Outside diameter |
Wall thickness(mm) |
Length(mm) |
|
Pressed pipe |
1~25 |
0.1~2.5 |
produced under requirements |
Extruded pipe |
25~200 |
1.5~8 |
produced under requirements |
Die Pressed pipe |
25~1800 |
5~500 |
100~300 |
4 Main properties
Properties |
Unit |
Result |
Apparent density |
g/cm3 |
2.10-2.20 |
Tensile strength (min) |
MPa |
20 |
Ultimate elongation (min) |
% |
200 |
Residual Lubricant Content (max) |
% |
0.5 |
Dialectric Strength (min) |
KV/mm |
10 |
5 Applications
Insulated pipe casing for wire, pipe for corrosive fluids, electric insulated parts used in high frequent condition.
