Home > Products > PTFE Tube/Pipe > PTFE Tubing Factory in China
PTFE Tubing Factory in China
- Qingdao
- Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Senrong | |
| Model Number | SR-Tubing | Material | Other, PTFE | |
| Specification | Pressed, Extruded, and Molded | Length | unlimited | |
| Thickness | 0.1~500mm | Standard | ISO9000-2001 |
Product Description
PTFE Tubing Factory in China
1 Description
There are three types of PTFE tube: For a tube with outside diameter 1~25mm and thickness of wall 0.1~2.5mm, we choose imported polymerized PTFE resin and process it by pressing; For a pipe with outside diameter 25~200mm and thickness of wall 1.5~8mm, we choose suspended PTFE resin and process it by extruding; For a pipe with outside diameter 25~120mm and thickness of wall 5~500 mm, we process it by die pressing.
2 Features
- Very high working temperatures.
- Non-stick characteristics.
- Low friction surface
- Very high resistance to chemical and solvents.
- Very high electrical resistance.
- Bio-compatibility.
3 Specification
| TYPES | Specification | ||
| Outside diameter | Wall thickness(mm) | Length(mm) | |
| Pressed pipe | 1~25 | 0.1~2.5 | produced under requirements |
| Extruded pipe | 25~200 | 1.5~8 | produced under requirements |
| Die Pressed pipe | 25~1800 | 5~500 | 100~300 |
4 Main properties
| Properties | Unit | Result |
| Apparent density | g/cm3 | 2.10-2.20 |
| Tensile strength (min) | MPa | 20 |
| Ultimate elongation (min) | % | 200 |
| Residual Lubricant Content (max) | % | 0.5 |
| Dialectric Strength (min) | KV/mm | 10 |
5 Applications
Insulated pipe casing for wire, pipe for corrosive fluids, electric insulated parts used in high frequent condition.

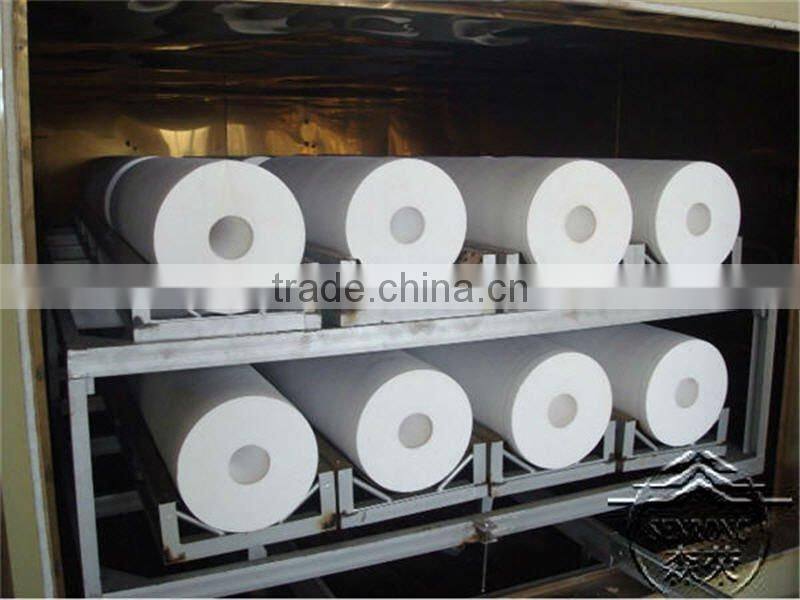

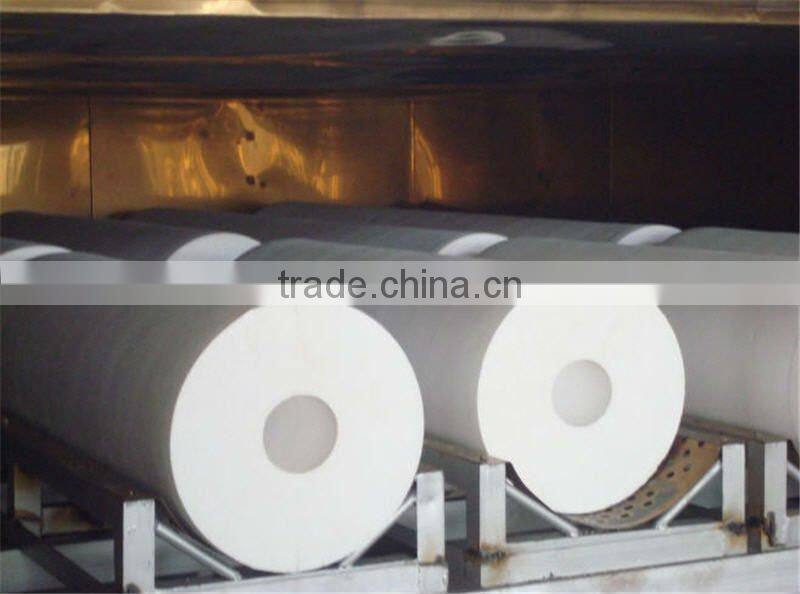

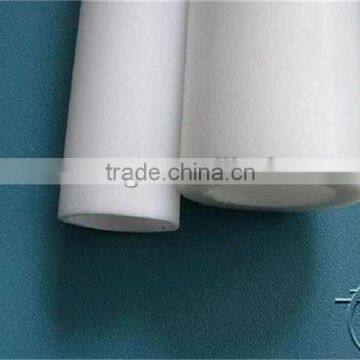

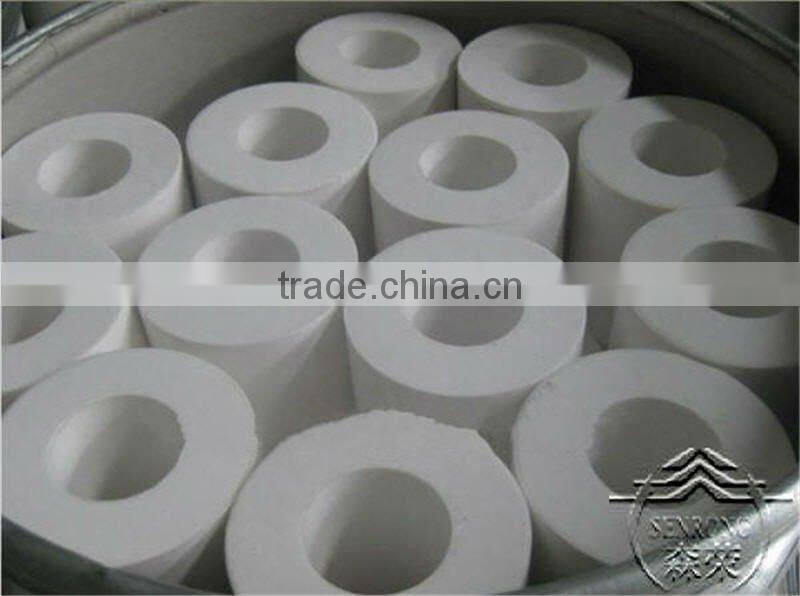

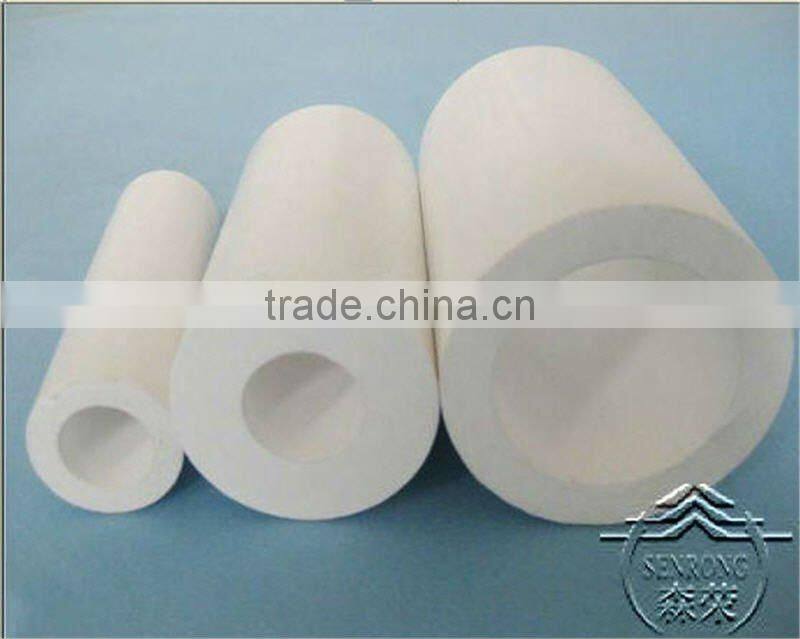

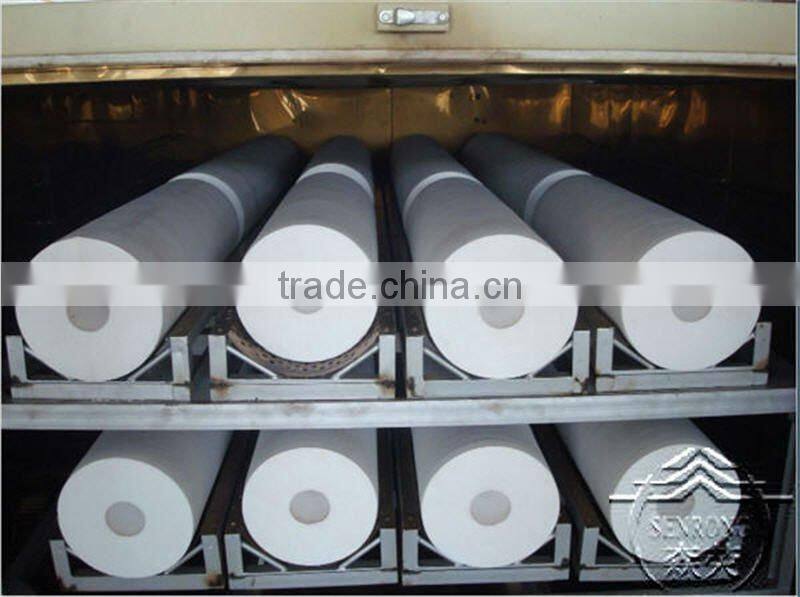

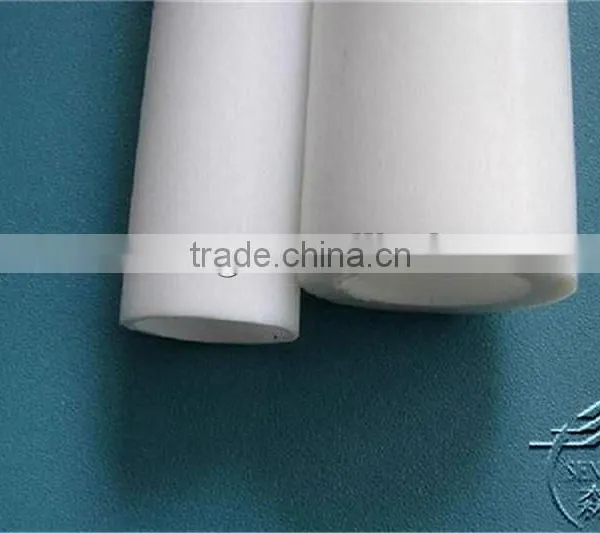

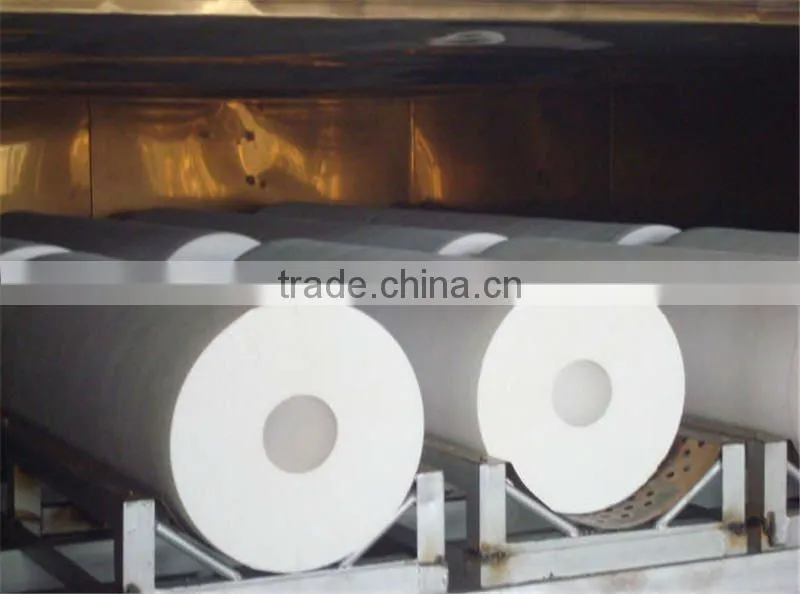

6 Photos
