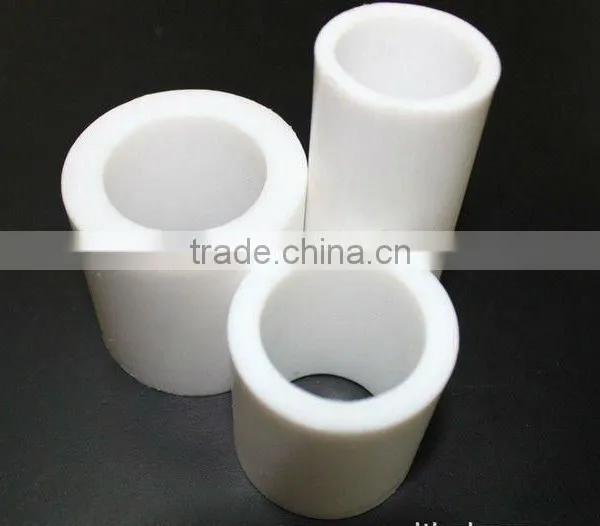

EXTRUDED PTFE PIPE/TUBE

PTFE pipe is made by plunger extrusion of suspension polymerized PTFE resin. Among all the existing plastic, PTFE has the best corrosion-resistance and dielectricity.

Usage:
Lead insulating sleeve, corrosion-resistant pipe, and corrosion-resistant insulating pipe for different corrosive conditions, heat exchanger.

Main technical indicator:
1) Apparent density: 2.10 - 2.30g/cm³
2) Tensile strength (min): 18Mpa
3) Ultimate elongation (min): 230%

Specification of paste- extruded:
1) External diameter (mm): 0.5 - 4.0; thickness (mm): 0.2 - 1.0; length (mm): ≥4,000
2) External diameter (mm): 5.0 - 25.0; tThickness (mm): 1.0 - 25.0; length (mm): ≥4,000

Specification of molded:
1) External diameter (mm): 10 - 500
2) Thickness (mm): ≥7
3) Length (mm): ≤300
