Certification:ISO9001,ISO14001,CE,SGS,ROHS,REACH
High Rigidity, Fireproof Aluminium Composite Panels With PE ,PVDFCoating 3-6mm
Description:
1) Well weather-resistance, high rigidity, easy for maintenance, only neutral cleanser and water needed for its self-clean performance;
2) Easy finishing with conventional woodworking tools. Short time needs for project;
3) Good workability, fire-resistance, heat＆sound insulation;
4) High flexibility and impact-resistance, superior surface flatness, lightweight, rigid;
5) Various colors are available according your needs;
6) Competitive price and quick delivery.
|
Raw material |
product specifications |
|
Base material of aluminum panel:high strength aluminum coils |
thickness:3-6mm. |
|
PE core:Fire-resist core |
width:1000-2000mm.1220mm,1250mm, 1500mm,2000mm are recommended |
|
Surface coating:PE ,PVDF coating |
Length: maximum is up to 5800mm,2440mm, 3050mm,4050mm are recommended |
|
Thickness of aluminum sheet:0.12mm-0.5mm |
Application:
-Exterior applications as:
Wall cladding, facades, roofs and canopies, tunnels, column covers or renovations.
-Interior applications as:
Wall cladding, ceilings, bathrooms, kitchens and balconies.
-Advertisement and market applications as:
Display platforms, signboards, fascias and shop fronts etc.
-Transport＆Industry applications

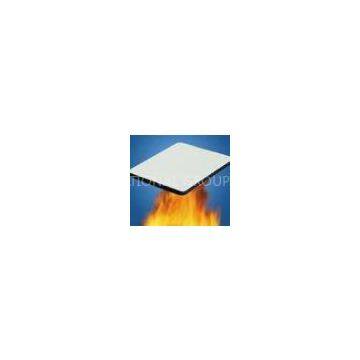

A2 Fire-proof Aluminum Composite Panel / FR panel
MAXL fire-resist aluminum composite panel is made of fireproof plastic core with two layers of aluminum sheets; it is one kind of new decorative material. Because of addition of fireproof element, its fireproof feature can reach Class A2 grade with the test of GB8624, incapable to be fired. It is green material.
|
Raw material |
product specifications |
|
Base material of aluminum panel:high strength aluminum coils |
thickness:3-6mm,4mm is recommended |
|
PE core:Fire-resist Core |
width:1000-2000mm,1220mm,1250mm,1500mm,2000mm are recommended |
|
Surface coating:fluorocarbon coating |
length: maximum is up to5800mm,2440mm,3050mm,4050mm are recommended |
|
Thickness of aluminum sheet:0.2mm-0.5mm |
Contrast Fire Test
Among Class A2 FR panel, Class B FR panel and Normal PE Core ACP (30 seconds after ignition out)
Class A2 no influence no flame Class B flame has generated Normal PE core (combustible)
Features of MAXL A2 FR ACP
1.Low price, light weight
2.High strength
3.Smooth surface, good coating quality, good insulation
4.Easy processing.
5.It is the replacement of traditional products-solid aluminum, fit for high required fire walls and indoor and outdoor decoration.
Test Report
|
Coating |
Requirement |
Composite Panel |
Requirement |
|
coating rigidity |
≥２Ｈ |
Length Deviation |
≤2mm |
|
Adhesive Force |
Cross-Cut Method Level 0 |
Width Deviation |
≤1mm |
|
Coating Flexibility |
≤2T |
Thickness Deviation |
≤0.1mm |
|
Durability |
≥5L/μm |
Diagonal Deviation |
≤3mm |
|
Boiling Water Resistance |
