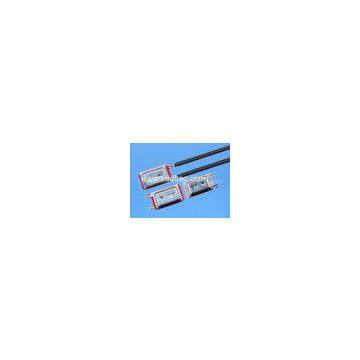

17AM Thermostat, 17AM Thermal Protector photo-3
US$ 0.215 - 0.215 MOQ: 1000 Poles
Key Specifications
Get Latest Price
Brand Name:
HENGHAO
Place of Origin:
China
Model Number:
17AM
Contact Supplier Request Quote Chat Now
Dongguan Heng Hao Electric Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HENGHAO
Place of Origin China
Model Number 17AM

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector

1.       17AMH thermostat’s Principle and structure

17AMH is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

2.       17AMH thermal protector’s Specification

2.1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A

2.2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

2.3. Operating temperature range: 50-180°C

2.4. Temperature tolerance: ±2°C±3°C±5°C

2.5. Reset temperature: 10~45 degrees in off temperature decline.

2.6. Working times: Over 10000 times

2.7. Code syste

17AMH  XXX  A / B  5  A,B,C,D………..Z

(17AMH): The number of product series

(XXX): Trip off temperature in °C Code

(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction

(5): OFF Temperature Tolerance Code

(A, B, C, D………..Z): Different type of connecting wire

2.8. Trip off temperature in °C Code

Degrees °C

Code

Degrees °C

Code

Degrees °C

Code

Degrees °C

Code

55°C

018

90°C

025

125°C

032

160°C

039

60°C

019

95°C

026

130°C

033

165°C

040

65°C

020

100°C

027

135°C

034

170°C

041

70°C

021

105°C

028

140°C

035

175°C

042

75°C

022

110°C

029

145°C

036

180°C

043

80°C

023

115°C

030

150°C

037





85°C

024

120°C

031

155°C

038





2.9. Product Drawing

3.       17AMH temperature protector’s Application

17AMH thermal protector is applicable to all kinds of Motor, commutator for fluorescent lamp, tansformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances

4.       17AMH thermostat’s A/°C and A/T Graph:

The product UL,CQC,VDE and RoHS certification approval.
