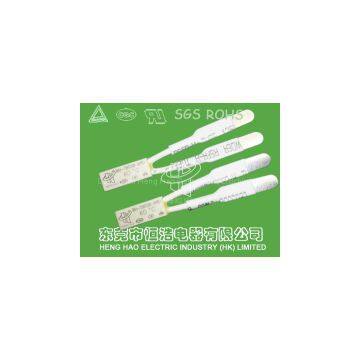

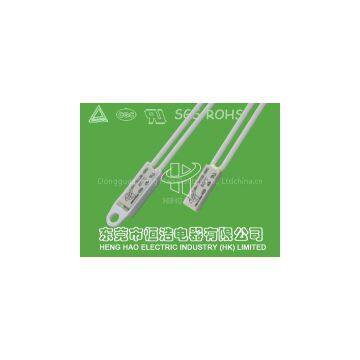

BH-TB02B-B8D snap-action thermostat,BH-TB02B-B8D thermal cutout

Product Description

BH series thermostat / Miniature thermal protector /Rechargeable battery thermostat
1. BH series thermostat's Principle and structure
BW & BH series that can protect against over-current and over-temperatureare sealed firmly, small internal resistance, no noise and reset automatically.When current through bimetal that are sensitive to temperature and current, thestatus of the bimetal will be changed by over-temperature or over-current tocut off circuit or switch on circuit. BH series are safer than normalprotectors, as there is no temperature effect lag under condition of sudden bigcurrent.
2. BH series thermostat's Specification
2.1. Electrical Rating:
a. DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A for BHseries
b. DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A for BH-TB02series
2.2. Open temperature: (30~150)±5°C; 5°C a step.
2.3. Reset temperature: 2/3 of the action temperature with tolerance of ±15°C.Reset temperature can also be provided according to customers' requirement.
2.4. Dimension
Model Length (mm) Width(mm) High(mm) Lead wire
BH-TB02B-B8D 13.5 5.4 2.4 3266-AWG24#, 3135-AWG24# or nickel strip normally,length is 70 mm or according to customer's require
BH-A1D 15 6.6 3.2
BH-B2D 15 7.3 3.9
BH-B3D 18 8 4

3. BH series thermostat's Application and Instruction
BH series thermal protectors ,effective reliable security protector and alarmdevices, are widely used in various types 1.5 horsepower motors, lightingdevice, inverter welding machine, switch power, rechargeable battery pack,fluorescent lamp ballasts, portable power tools, electric appliances and otherelectric equipment to prevent from over-current & over-heating caused byabnormal work status. Enforced types that can withstand pressure of 3.5MPa arefit for build-in-installation of plastic coated motor.
4. BH series thermostat's Code System of Product
4.1. BH series Code system

4.2. BH-TB02 series Code system

The product UL,CQC,VDE and RoHS certification approval.
