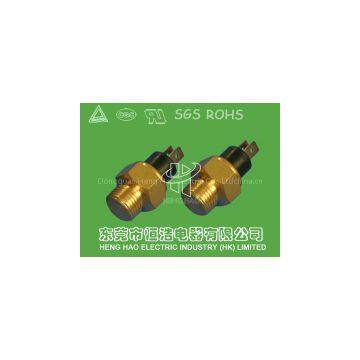

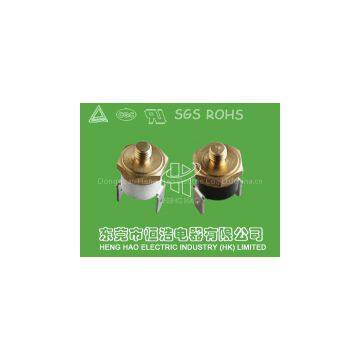

M6 temperature thermostat,M6 thermal protector

Product Description

KSD301 thermostat / bimetal thermal protector / KSD301temperature protector 1. KSD301 temperature protector's Principle and structureThe main principle of KSD series thermostat is that one function of bimetaldiscs is snap action under the change of sensing temperature. The snap actionof disc can push the action of the contacts through the inside structure, andthen caused on of off the circuit finally. The main characteristic are thefixation of working temperature, the reliable snap action, less flashoverlonger working life and less radio interference. 2. KSD301 thermostat'sspecification 2.1. Electrical Rating: AC 125V max 15A; AC250V 5A 10A 15A max16A 2.2. Action Temperature: 0~250 degree 2.3. Recovery and action temperaturedifference: 10 to 25 degrees, or according to client's request. 2.4.Temperature deviation: ±3 / ±5 / ±10 degree or according to client's request2.5. Circuit resistance: ≤50mΩ (Initial value) 2.6. Insulation resistance:≥100mΩ (DC500V Normal State) 2.7. Dielectric Strength: AC50Hz 1500V / min, nobreakdown blinding (Normal State) Life cycle: ≥100000 2.8. Normally closed oropen 2.9. Two kinds of mounting bracket: movable or immovable 2.10. Terminal a.Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm b.Terminal Angle: bending angle: 0~90°C optional 2.11. Two kinds of body: plasticor ceramic. 2.12. Two kinds of temperature sensor face: aluminium cap or copperhead. 3. Difference of auto reset type and Manual reset type 3.1. Manual resettype: Temperature sensing components consist of bimetallic strip. When thetemperature reached the action temperature range, it will jump quickly and themovable disc disconnects. When the temperature declines to a fixed temperaturepoint, the contact point cannot reset until reconnecting the circuit by pushingthe reset button. And then the contact points recover, reaching a purpose ofconnecting or disconnecting the circuit and restarting the circuit by manualreset. (Kindly reminder: 1.This type of manual reset thermostat can reset whenthe temperature declines 20 °C after snap action by pressing the reset button.And 4~6 N will be advisable; please don't use too much strength. 2. To ensurethe normal function, the distance between the reset button and the close cover shouldnot be less than 20.4mm. ) 3.2. Manual reset type: Temperature sensingcomponents consist of bimetallic strip. When the temperature reached the actiontemperature range, it will jump quickly and the movable disc disconnects. Whenthe temperature declines to a fixed temperature point, the contact point canauto reset and start working. 4. KSD301 bimetal thermostat's Application It isused as temperature control for household electric appliances and widelyapplied in coffee pots, automatic toasters, laminators, electric water pots,steam guns, steam irons, wind warmers, microwave ovens, water dispensers, etc.The product UL,CQC,VDE and RoHS certification approval. Thermostat, thermal

KSD301

protector supplier, thermal protector, Thermostatsupplier Thermostat manufacturer

Product Specification / Models

250V 10A~16A 0-280Degree

Application / Models

household electric appliances and widely applied incoffee pots, automatic toasters, laminators, electric water pots, steam guns,steam irons, wind warmers, microwave ovens, water dispensers, etc.
