PTFE skived film and tape
1 Description:
Senrong has made extensive investments in the latest skiving technologies, enabling us to provide customers with high quality, competitively priced products. For its excellent dielectric capability, anti-aging and anti-corrosion property, Super thin PTFE teflon skived Tape&Film has been used in a wide range of industries including the electronics and semi conductor industries. Furthermore, it is classified into oriented film, semi-oriented film and non-oriented film.
Super thin PTFE teflon skived Tape&Film is available in a wide range of widths, thickness and colors.
Especially, Senrong’s new investment in a high precision film skiving machine will make the production of ultra thin film or sheet possible, and can consistently achieve the tightest tolerance of ±.05 mils so that we can meet these exacting demands from customers worldwide.
2 Features:
1) anti-voltage intensity
2) high breakdown voltage
3) wide operation temperatures
4) Chemical resisting
3 Specifications:
Property | Unit | High-density | Semi-density | Common |
Tensile strength | MPa | ≥30 | ≥20 | ≥10 |
Elongation at rupture | % | ≥30 | ≥60 | ≥100 |
1MHz dielectric loss tangent |
| 2.5×10-4 | -- | -- |
1MHz dielectric constant |
| average 1.8-2.2 | - | -- |
Dc breakdown voltage (Normal temperature) | KV/M | average 200 | average 60 | average 30 |
Values shown are typical and should not be used for specifications. All data is subject to change without notice. In all instances, the user shall determine the suitability in any given application.
4 Main properties:
Item | Thickness | Thickness allowance | Thickness | Width allowance | Length |
high-density | 0.015,0.030 | ±0.003mm | 30-90 | ±0.3 | ≥50 |
semi-density | 0.030,0.035 | ±0.003mm | 60-90 | ±0.3 | ≥100 |
common | 0.020,0.025 | ±0.003mm | 60-90 | ±2.0 | ≥50 |
5 Applications:
Super thin PTFE teflon skived Tape&Film is always used in Lining, sealing and oil less lubricating materials and dielectric at any frequencies, capacitor dielectric, wire isolation, electrical instrument isolation.

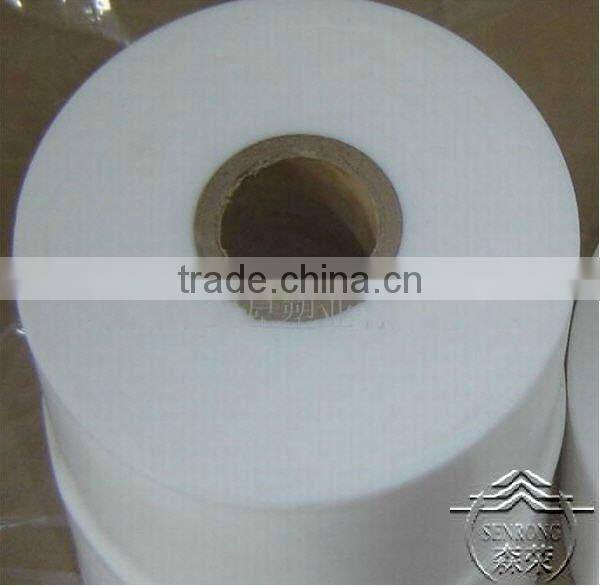

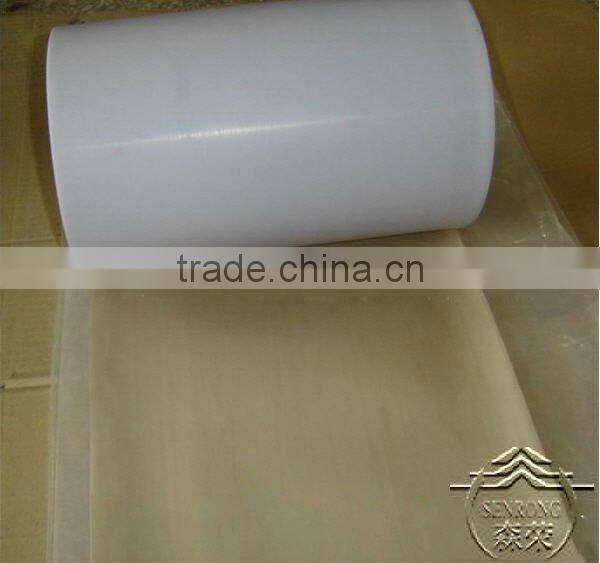

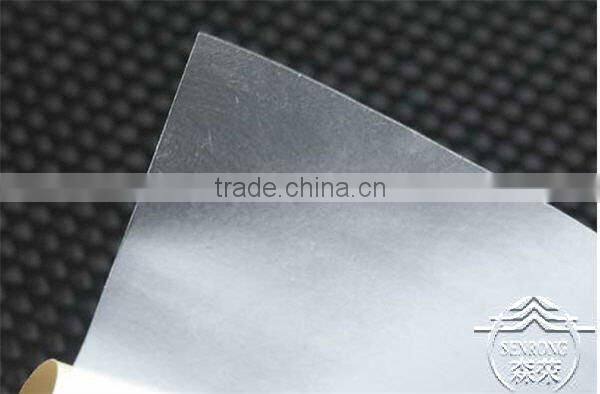

6 Photos:
