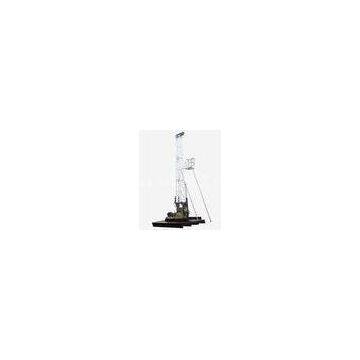

37KW simple structure core drilling rigs with wide range adjusting angle 45-90° XY-44T
The XY-44T core drill rig, combining rig with derrick into one unit,is kind of drilling equipment integrated the drill rig and mast-type derrick, with the function of derrick’s hydraulic lifting and lowering. The rig is simple in structure, reasonable in design, light in weight, easy for operation; it has a wide range adjusting angle. It is especially suitable for great slope angle drilling.
The Specification for XY-44T Core Drill Rig
The Main Parameter of Drill Rig
|
Max. Torque |
3.2KN·M |
|
Spindle Stroke |
600 mm |
|
I.D. of Spindle |
93 mm |
|
Max. Lifting Capacity of Spindle |
120 KN |
|
Max. Pressure of Spindle |
90 KN |
|
Max. Hoisting Power |
45 KN |
|
Power of Motor |
37 KW |
The Parameter of Mast
|
Height |
10 Meters |
|
Area of Base |
4×4 M2 |
|
Area of Top Level |
0.46×0.52 M2 |
|
Number of Pulley |
5 or 3 pieces |
|
Max. Load of Derrick |
100 KN |
|
Load of Movable Operation Platform |
800 N |
|
Adjusting Angle of Derrick |
45-90° |
