Help CenterJoint Wrap Tape Coating System
Related Products
Pipe Wrap, Joint Coatings & Accessory Products
Xunda carries a full line of products to complement the main line coating systems and meet the challenges of modern pipeline activities.
Utility work: hand-applied tape products for gas utility, oil field, and plumbing applications on small diameter pipe.
Coating repair: cold-applied tape products for plant and field repair of main line coating systems.
Specialty fittings and fabrication work: a variety of tape systems and mastics that conform to irregularly-shaped pipe.

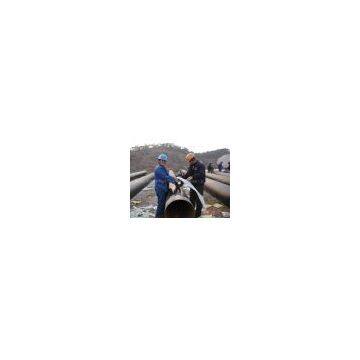

Field joints: single-sided and double-sided tape systems that conform to bell and spigot, welded and mechanically-coupled field joints.
ROW construction: Rock shield system, tie-in, and above-ground tape systems for use at the job site by the pipeline contractor.
Offshore Tapes: Whether replacing PVC on welded joints or protecting Pier Pilings, Xunda has the tape coating for the job.
|
Product |
Uses & General Characteristics |
Total |
Adhesion |
Maximum |
|
1027 |
Solvent-based primer designed for brush, roller or spray application to mechanically cleaned pipe surfaces. Contains stress-corrosion cracking inhibitors.
|
N/A |
N/A |
100°C |
|
910 |
All-purpose tape system for field application in the oil patch. |
0.25 mm |
11 N/10 mm |
66°C |
|
900 |
General utility tape for hand application on small diameter pipe, joints and fittings. |
0.30 mm |
11 N/10 mm |
66°C |
|
930(-35) |
Heavy duty joint wrap tape for hand wrapping in applications where higher shear properties are required. Designed without release liner for less waste and ease of use. |
0.89 mm |
25 N/10 mm |
66°C |
|
932(-35) |
Cold-applied tape system with an elevated high-tack adhesive. Provides excellent conformability when hand applied to field joints, fittings and specialty piping. EN/DIN B30 Qualified. |
0.89 mm |
28 N/10 mm |
66°C |
|
932(-50) |
1.27 mm |
28 N/10 mm |
66°C |
|
|
934(-35) |
Cold-applied tape system with a high tack adhesive. Used as a patch/repair system and as the primary corrosion protection system on field joints, fittings and specialty piping. |
0.89 mm |
28 N/10 mm |
66°C |
|
934(-50) |
1.27 mm |
35 N/10 mm |
66°C |
|
|
939 |
100% solids mastic designed as a self-adhering filler material prior to overcoating with Polyken joint coating tape systems. |
3.17 mm |
33 N/10 mm |
93°C |
|
954 |
Mechanical protection layer for use with all of the Polyken joint wrap coating products. Easy hand or (outerwrap) (outerwrap) machine application. |
0.38 mm |
N/A (outerwrap) |
85°C |
