ptfe sheet roll
- Qingdao
- Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Senrong | |
| Model Number | SR-Sheet | Material | PTFE | |
| Thickness | 0.2-7mm, 0.5~100mm | Size | >500mm |
Product Description
ptfe sheet roll
1 Description:
Skived PTFE Sheet is manufactured by technology of compacting, sintering, rotary cutting with PTFE granular resin. As PTFE has a very low co-efficient of friction, so the surface of skived teflon PTFE sheet has similar friction levels to ice. Skived PTFE Sheet can work at -180°C ~+260°C and is the best electrical insulator of all known plastics.
2 Features:
1.Drug resistant
2.Corrosion resistant
3.Temperature resistant
4.Abrasion resistant
5.Voltage resistance
3 Fileds:
Skived PTFE Sheet can be used as lining, seal components, wire isolation, slide block, gasket, seal, dielectric material, etc.
4 Technical Data:
Property | Unit | Result |
Apparent Density | g/cm3 | 2.10-2.30 |
Tensile Strength ≥ | MPa | 20 |
Crack Elongation ≥ | % | 250 |
Dielectric Strength | KV/mm | 10 |
Working Temperature | °C | -180°C ~ + 260°C |
5 Specifications:
Length(mm) x Width(mm) | Thickness(mm) | |
Nominal | Tolerance | |
150 x 150 | 1.0-30 | ±0.30 ~ ±0.50 |
250 x 250 | 1.5-30 | ±0.30 ~ ±0.50 |
300 x 300 | 1.5-30 | ±0.30 ~ ±0.50 |
50 x 450 | 1.5-30 | ±0.30 ~ ±0.50 |
600 x 600 | 2-30 | ±0.30 ~ ±0.50 |
800 x 800 | 3-30 | ±0.30 ~ ±0.50 |
1000 x 1000 | 3-30 | ±0.30 ~ ±0.50 |
200 x 1200 | 3-30 | ±0.30 ~ ±0.50 |
1000 x 2000 | 5-30 | ±0.30 ~ ±0.50 |
1500 x 1500 | 5-30 | ±0.30 ~ ±0.50 |
1800 x 1800 | 8-30 | ±0.30 ~ ±0.50 |
2000 x 2000 | 8-30 | ±0.30 ~ ±0.50 |
Remarks:
We can also produce Skived PTFE Sheet in other sizes and thickness according to customer's specific requirements.

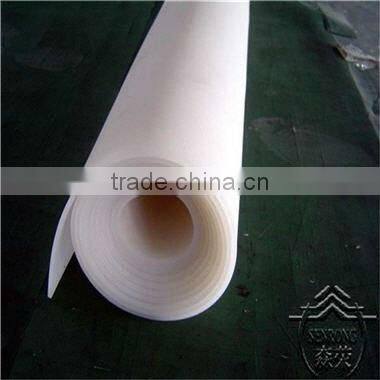

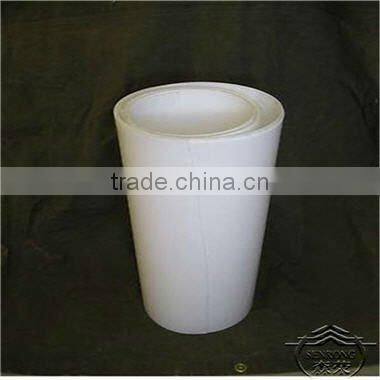

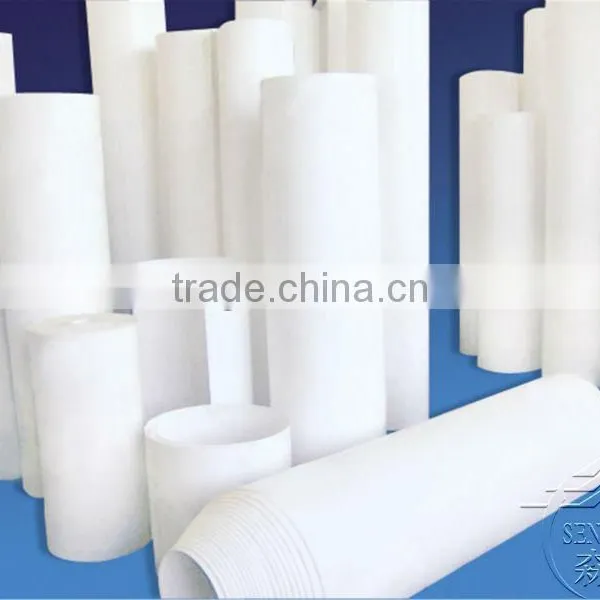

6 Photos:
