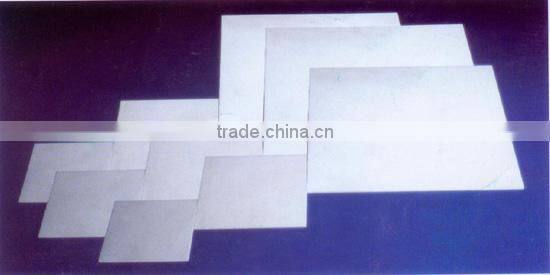

Help Center3mm White Skived Ptfe Sheet
Related Products
ptfe sheet can be devide into teflon skived sheet, teflon mold sheet and ptfe film.
the size of ptfe mold sheet:
length*width(mm)
150*150,250*250,300*300,450*450,600*600,800*800,1000*1000,1200*1200,1000*2000 and so on.
the thickness is from 5mm-100mm.
the size of ptfe skived sheet:
the thickness is from 0.2mm-7mm,
the length had no limited.
the width is about 850mm,1000,1200,1500,1800,2000 and so on.
main properties:
properties |
unit |
result |
Apparent density |
g/cm³ |
2.1-2.3 |
Tensile strength |
Mpa |
15 |
Crack elongation |
% |
150 |
applications:
lining bearing pads,seals,and electrical insulation.
1) Features of skived ptfe films:i.anti-corrosion in all kinds of chemicals including nitric acid & aqua fortis ;ii.good dielectric in mediums;iii.non-aging;iv.can be used in wide strength range etc.
2) Use of skived PTFE films:i.seal liner and lubricant material in kinds of medium,especially corrosive situation.ii.dielectric material in kinds of frequency;dium material of capacities;iv.insulation materials in electrics systems,etc
3) Specifications of skived ptfe films
Thickness 0.03-0.1*width 30-100-length 10+m
Thickness 0.1-0.5*width 100-2500+length 5+m
in fluoroplastics,ptfe got the most consumption and was used widely.its an important variety of fluoroplastics.ptfe all of the hydrogen replaced by fluoride.ptfe exhibit astonishing chemical resistance,this self-lubricating materials for the manufactures of corrosion-resistant gaskets&seals.one of the most chemically resistant materials available,ptfe can approaching 500f(280 degree).it also has a high oxygen level.
advantage:
1.superior endurance in corrosion.
2.superior endurance in seasonal change.
3.non-flammable,limited oxygen index is under 90.
4.low friction coefficient.
5.non-viscous
6.superior endurance in high&low temperature,can be used -190degree-260degree
7.high electricity insulation
8.high electrictiy resistance coefficient
9.self-lubricating
10.atmospheric aging resistance
11.radiation-resistance properties and low permeability
