High Speed Large and Intermediate Drawing Machine With Annealing

Wuxi Bao Chuan Machinery Manufacture Co.,Ltd
High Speed Large and Intermediate Drawing Machine With Annealing thumbnail-1
High Speed Large and Intermediate Drawing Machine With Annealing thumbnail-2
High Speed Large and Intermediate Drawing Machine With Annealing photo-1

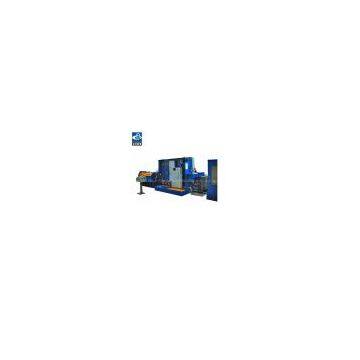

High Speed Large and Intermediate Drawing Machine With Annealing photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
BAOC-9DT BAOC-11DT
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number BAOC-9DT BAOC-11DT

Machine Type

BAOC-9DT

BAOC-11DT

Annealing method

DC.three-section annealing

driver

Dual Inverters control

Outlet diameter(mm)

φ 2.6-φ 1.0mm

φ 2.8-φ 0.8mm

Inlet diameter(mm)

φ 3.5-φ 2.6mm

Φ3.5-φ 2.5mm

Drawing  speed(MPM)

800mpm/max

1200mpm/max

Dies number

9

11

Slip ratio of m/c

19.6%+12.5%

Main motor

45KW

55KW

Spool motor

11KW

15KW

Transmission type

By gears

Tension control

By air pressure adj.

Traversing unit

90W motor type

Detecting device

Weight balance by swing arm

Spooler motor

AC150KW  6P

brake

Disc brake

Oval diameter of dehydrate

Φ25mm

Φ25mm

Max annealing current

DC2500A/MAX

DC3000A/MAX

Max annealing voltage

DC65V/MAX

DC65VMax

Annealing wheel dia.

Φ280mm

Φ350mm

Annealing length

1800mm

2600mm

Preheat length

7500mm

11000mm

Annealing power

165KVA/MAX

195KVA/MAX

Steam generator

18KW

Quantity of steam

18kg/h

Quantity of coolant water for annealing

650L/min

Capacity of compressed air

0.4-0.6Mpa,50L/min

Machine weight

3000KG

3000KG

use

BAOC9D,BAOC11D ,BAOC13D
