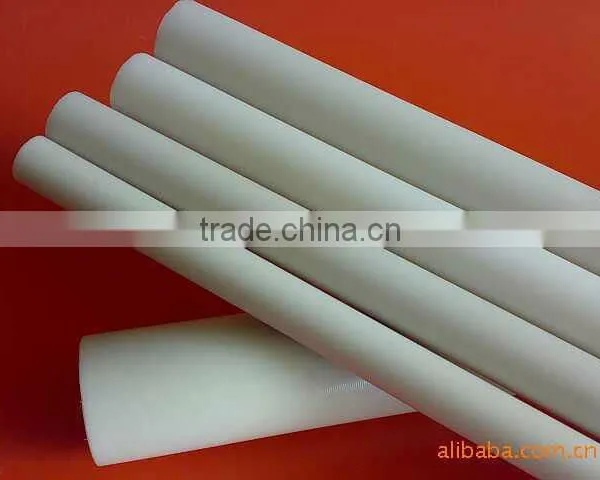

Extruded Virgin PTFE Rod

Specifications

1chemical resistant
2dielectric
3not aging and binding
4can be used from -180~+260degree
5lowest coefficient of friction

1,Features:

 There are three kinds of PTFE rods to offer .one is manufactured by paste extruding method in the diameter from 2 to 4mm and the other is made by ram extruding method in the diameter from 5 to 120mm; rods over the diameter 55 to 300mm are manufactured by moulding .

PTFE is the most chemical-resistant and the best dielectric of all known plastics.It is not aging and binding .It can be usde from -180°C—+260°C under no burthen circumstances.PTFE has the lowest coefficient of friction of all known solid materials.

2,Types and sepcifications:

TYPES	Diameter(mm)	Length(mm)
Pressed rod	2~4	Produce under requirement
Extruded rod	5~120	500~3000
Die pressed rod	55~300	100~300

3,Main properties:

Properties	Unit	Result
Apparent density	g/cm³	2.10~2.30
Tensile strength(min)	Mpa	14
Crack elongation(min)	%	230

4,Applications:

Electrical insulations ,seal,anti-stickingmaterials.
