Certification:CE,UL,ISO9001,ETL

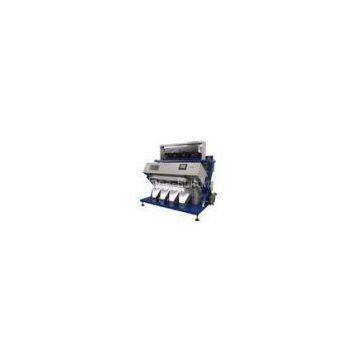

V type , U type 42 Channels 220V / 50HZ rice, grains colour sorting machine
Specifications:
|
Model |
HJ-C2R |
|
Machine weight (kg) |
850 |
|
Dimensions(L×W×H)cm |
118×142×140 |
|
Channels |
42 |
|
Materials handling capacity (T/H) |
1.5-2.0 |
|
Accuracy of color selection |
≥99.5% |
|
Best \"out of ratio\" |
>10:1 |
|
Host power |
1.0 |
|
Air pressure |
≥0.6Mpa |
|
Air consumption (L/min) |
500-1500 |
|
Power supply voltage |
～220V/50HZ |
1. Using imported 5000*3 pixel true color CCD linear array camera, recognition accuracy up to 0.08mm, and take machine vision into production in this industry;
2.Using linear array image scanning technology , high-speed intelligent image acquisition system;
3. Using the most advanced U.S. technology for programming device, and the embedded software operation platform make system more stable, response faster and function more powerful;
4. The system is added to special algorithm, such as shape selection, and area algorithm, to solve problems like sorting some kinds of beans according to their shape , color , and area at the same time and expand the scope of application of color sorter , and make multi-function , multi species of color sorting come true;
5. Using the most advanced LED optics technique in the world, machine has longer life , better uniformity, more wide color areas, and lower power consumption, the power consumption is only 10-30% for general lighting ;
6.Using different slide according to different materials, no need to change light source, and it is suitable for a variety of industrial products, beans, nuts, grains and other particles and sheet material;
7.Using of V type , U type , flat slide , and special technology to ensure product stability and reliability;
8.Integrating more than 10 global exclusive patent technology.
Applications:
Calaite , Industrial, Stone Sorting, Grading
Competitive Advantage:
1. 5000*3 pixel CCD camera and photo processing technology
2.Recognition accuracy up to 0.08m㎡
3.Passed CE, UL, ETL, ISO9001
4.LED TFT real 8.4 inch screen
5.Self checking system
