Ship Deck Crane

Shanghai Guanhai Engineering Co.,ltd
Ship Deck Crane thumbnail-1
Ship Deck Crane thumbnail-2
Ship Deck Crane thumbnail-3
Ship Deck Crane photo-1

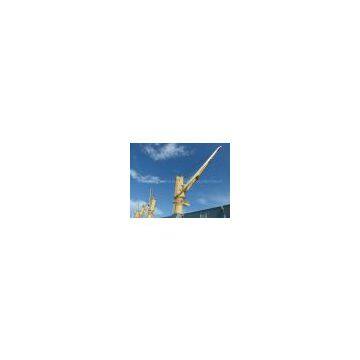

Ship Deck Crane photo-2

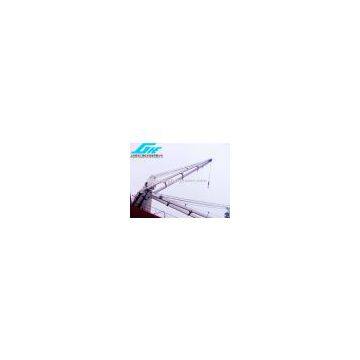

Ship Deck Crane photo-3
US$ 1 - 1 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
GHE
Place of Origin:
China
Model Number:
(GHE-SDC-001-A)
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GHE
Place of Origin China
Model Number (GHE-SDC-001-A)
1. Self contained unit with integrated hydraulic power pack.
2. Fail-safe brakes on all movements.
3. Fully enclosed and equipped drivers cabin with integrated heating.
4. Dual pump system with separate hydraulic circuit for hoist and luffing/slewing to ensure efficient cargo handling.
5. The variable speed hoist will automatically adjust to the highest possible speed for the appropriateload.
6. Welded box boom for low maintenance.

The Main technical parameters of Wire-luffing Marine Cargo Crane
explain:
1, Computer aided design.
2, Technology from germany.
3, Base on many year`s experience of crane and harbor equipment.
4, All component are import from Eur and usa and reach a global service agreement.
5, Driven by closed hydraulic syetem and adopt standardized components.
6, Suitable for all kinds of ships and low power consumption.

Model
Hoist cap

working radius
Luffing height
Hoisting speed
Luffing time
Slewing speed
Motor power
weight total
Dead weight
SWL
Max B
Max A		           M max N
max
T m
m		 H+K 100%load
Low(m/min)		 40%load
High(m/min)		 sec r/min KW Knm Kn T
GHM25T/20M-00 25 20 2.5 35 23 40 42 1 110 6600 630 37
GHM25T/25M-00 25 25 3 35 23 40 52 1 110 9000 670 39
GHM25T/30M-00 25 30 3.5 35 23 40 60 0.9 110 10600 680 40
GHM25T/35M-00 25 35 3.5 35 23 40 75 0.8 110 11600 720 45
GHM25T/40M-00 25 40 4 35 23 40 80 0.7 110 13200 860 50
GHM30T/20M-00 30 20 2.5 35 23 40 50 1 110 7500 630 36
GHM30T/25M-00 30 25 3 35 23 40 56 1 132 10000 700 40
GHM30T/30M-00 30 30 3.5 35 23 40 60 0.9 132 12000 760 45
GHM30T/35M-00 30 35 3.5 35 23 40 75 0.8 132 15000 860 50
GHM30T/40M-00 30 40 4 35 23 40 83 0.7 132 17500 900 55
GHM40T/20M-00 40 40 3.5 35 23 40 50 0.9 160 9700 700 40
GHM40T/25M-00 40 25 3.5 35 23 40 55 0.8 160 13000 750 42
GHM40T/30M-00 40 30 3.5 35 23 40 75 0.7 160 16000 860 50
GHM40T/35M-00 40 35 4.5 35 23 40 76 0.8 160 18500 870 54
GHM45T/20M-00 45 20 3.5 35 23 40 75 0.7 160 11000 710 44
GHM45T/30M-00 45 30 4.5 35 19 29 75 0.6 160 18000 880 52
GHM50T/20M-00 50 20 3.4 35 19 29 55 0.7 200 12000 900 42
GHM50T/25M-00 50 25 3.5 35 19 29 66 0.6 200 16000 980 50
GHM50T/30M-00 50 30 4.5 35 16 26 82 0.6 200 19500 1100 59
GHM60T/20M-00 60 25 4 35 16 26 65 0.7 200 14000 1050 45
GHM60T/25M-00 60 25 4.4 35 16 26 75 0.6 200 19500 1150 55
GHM60T/30M-00 60 30 4.8 35 16 26 86 0.6 200 21500 1200 60
GHM80T/20M-00 80 20 4.4 35 16 26 72 0.7 200 20000 1200 61
GHM80T/25M-00 80 25 4.6 35 16 26 80 0.6 200 22000 1300 65
GHM80T/30M-00 80 30 4.8 35 16 26 82 0.6 200 24500 1450 68
The Main technical parameters of Wire-luffing Marine Cargo Crane
explain:
1, Computer aided design.
2, Technology from germany.
3, Base on many year`s experience of crane and harbor equipment.
4, All component are import from Eur and usa and reach a global service agreement.
5, Driven by closed hydraulic syetem and adopt standardized components.
6, Suitable for all kinds of ships and low power consumption.

Model
Hoist cap

working radius
Luffing height
Hoisting speed
Luffing time
Slewing speed
Motor power
weight total
Dead weight
SWL
Max B
Max A		           M max N
max
T m
m		 H+K 100%load
Low(m/min)		 40%load
High(m/min)		 sec r/min KW Knm Kn T
GHM25T/20M-00 25 20 2.5 35 23 40 42 1 110 6600 630 37
GHM25T/25M-00 25 25 3 35 23 40 52 1 110 9000 670 39
GHM25T/30M-00 25 30 3.5 35 23 40 60 0.9 110 10600 680 40
GHM25T/35M-00 25 35 3.5 35 23 40 75 0.8 110 11600 720 45
GHM25T/40M-00 25 40 4 35 23 40 80 0.7 110 13200 860 50
GHM30T/20M-00 30 20 2.5 35 23 40 50 1 110 7500 630 36
GHM30T/25M-00 30 25 3 35 23 40 56 1 132 10000 700 40
GHM30T/30M-00 30 30 3.5 35 23 40 60 0.9 132 12000 760 45
GHM30T/35M-00 30 35 3.5 35 23 40 75 0.8 132 15000 860 50
GHM30T/40M-00 30 40 4 35 23 40 83 0.7 132 17500 900 55
GHM40T/20M-00 40 40 3.5 35 23 40 50 0.9 160 9700 700 40
GHM40T/25M-00 40 25 3.5 35 23 40 55 0.8 160 13000 750 42
GHM40T/30M-00 40 30 3.5 35 23 40 75 0.7 160 16000 860 50
GHM40T/35M-00 40 35 4.5 35 23 40 76 0.8 160 18500 870 54
GHM45T/20M-00 45 20 3.5 35 23 40 75 0.7 160 11000 710 44
GHM45T/30M-00 45 30 4.5 35 19 29 75 0.6 160 18000 880 52
GHM50T/20M-00 50 20 3.4 35 19 29 55 0.7 200 12000 900 42
GHM50T/25M-00 50 25 3.5 35 19 29 66 0.6 200 16000 980 50
GHM50T/30M-00 50 30 4.5 35 16 26 82 0.6 200 19500 1100 59
GHM60T/20M-00 60 25 4 35 16 26 65 0.7 200 14000 1050 45
GHM60T/25M-00 60 25 4.4 35 16 26 75 0.6 200 19500 1150 55
GHM60T/30M-00 60 30 4.8 35 16 26 86 0.6 200 21500 1200 60
GHM80T/20M-00 80 20 4.4 35 16 26 72 0.7 200 20000 1200 61
GHM80T/25M-00 80 25 4.6 35 16 26 80 0.6 200 22000 1300 65
GHM80T/30M-00 80 30 4.8 35 16 26 82 0.6 200 24500 1450 68
The Main technical parameters of Wire-luffing Marine Cargo Crane
explain:
1, Computer aided design.
2, Technology from germany.
3, Base on many year`s experience of crane and harbor equipment.
4, All component are import from Eur and usa and reach a global service agreement.
5, Driven by closed hydraulic syetem and adopt standardized components.
6, Suitable for all kinds of ships and low power consumption.

Model
Hoist cap

working radius
Luffing height
Hoisting speed
Luffing time
Slewing speed
Motor power
weight total
Dead weight
SWL
Max B
Max A		           M max N
max
T m
m		 H+K 100%load
Low(m/min)		 40%load
High(m/min)		 sec r/min KW Knm Kn T
GHM25T/20M-00 25 20 2.5 35 23 40 42 1 110 6600 630 37
GHM25T/25M-00 25 25 3 35 23 40 52 1 110 9000 670 39
GHM25T/30M-00 25 30 3.5 35 23 40 60 0.9 110 10600 680 40
GHM25T/35M-00 25 35 3.5 35 23 40 75 0.8 110 11600 720 45
GHM25T/40M-00 25 40 4 35 23 40 80 0.7 110 13200 860 50
GHM30T/20M-00 30 20 2.5 35 23 40 50 1 110 7500 630 36
GHM30T/25M-00 30 25 3 35 23 40 56 1 132 10000 700 40
GHM30T/30M-00 30 30 3.5 35 23 40 60 0.9 132 12000 760 45
GHM30T/35M-00 30 35 3.5 35 23 40 75 0.8 132 15000 860 50
GHM30T/40M-00 30 40 4 35 23 40 83 0.7 132 17500 900 55
GHM40T/20M-00 40 40 3.5 35 23 40 50 0.9 160 9700 700 40
GHM40T/25M-00 40 25 3.5 35 23 40 55 0.8 160 13000 750 42
GHM40T/30M-00 40 30 3.5 35 23 40 75 0.7 160 16000 860 50
GHM40T/35M-00 40 35 4.5 35 23 40 76 0.8 160 18500 870 54
GHM45T/20M-00 45 20 3.5 35 23 40 75 0.7 160 11000 710 44
GHM45T/30M-00 45 30 4.5 35 19 29 75 0.6 160 18000 880 52
GHM50T/20M-00 50 20 3.4 35 19 29 55 0.7 200 12000 900 42
GHM50T/25M-00 50 25 3.5 35 19 29 66 0.6 200 16000 980 50
GHM50T/30M-00 50 30 4.5 35 16 26 82 0.6 200 19500 1100 59
GHM60T/20M-00 60 25 4 35 16 26 65 0.7 200 14000 1050 45
GHM60T/25M-00 60 25 4.4 35 16 26 75 0.6 200 19500 1150 55
GHM60T/30M-00 60 30 4.8 35 16 26 86 0.6 200 21500 1200 60
GHM80T/20M-00 80 20 4.4 35 16 26 72 0.7 200 20000 1200 61
GHM80T/25M-00 80 25 4.6 35 16 26 80 0.6 200 22000 1300 65
GHM80T/30M-00 80 30 4.8 35 16 26 82 0.6 200 24500 1450 68
The Main technical parameters of Wire-luffing Marine Cargo Crane
explain:
1, Computer aided design.
2, Technology from germany.
3, Base on many year`s experience of crane and harbor equipment.
4, All component are import from Eur and usa and reach a global service agreement.
5, Driven by closed hydraulic syetem and adopt standardized components.
6, Suitable for all kinds of ships and low power consumption.

Model
Hoist cap

working radius
Luffing height
Hoisting speed
Luffing time
Slewing speed
Motor power
weight total
Dead weight
SWL
Max B
Max A		           M max N
max
T m
m		 H+K 100%load
Low(m/min)		 40%load
High(m/min)		 sec r/min KW Knm Kn T
GHM25T/20M-00 25 20 2.5 35 23 40 42 1 110 6600 630 37
GHM25T/25M-00 25 25 3 35 23 40 52 1 110 9000 670 39
GHM25T/30M-00 25 30 3.5 35 23 40 60 0.9 110 10600 680 40
GHM25T/35M-00 25 35 3.5 35 23 40 75 0.8 110 11600 720 45
GHM25T/40M-00 25 40 4 35 23 40 80 0.7 110 13200 860 50
GHM30T/20M-00 30 20 2.5 35 23 40 50 1 110 7500 630 36
GHM30T/25M-00 30 25 3 35 23 40 56 1 132 10000 700 40
GHM30T/30M-00 30 30 3.5 35 23 40 60 0.9 132 12000 760 45
GHM30T/35M-00 30 35 3.5 35 23 40 75 0.8 132 15000 860 50
GHM30T/40M-00 30 40 4 35 23 40 83 0.7 132 17500 900 55
GHM40T/20M-00 40 40 3.5 35 23 40 50 0.9 160 9700 700 40
GHM40T/25M-00 40 25 3.5 35 23 40 55 0.8 160 13000 750 42
GHM40T/30M-00 40 30 3.5 35 23 40 75 0.7 160 16000 860 50
GHM40T/35M-00 40 35 4.5 35 23 40 76 0.8 160 18500 870 54
GHM45T/20M-00 45 20 3.5 35 23 40 75 0.7 160 11000 710 44
GHM45T/30M-00 45 30 4.5 35 19 29 75 0.6 160 18000 880 52
GHM50T/20M-00 50 20 3.4 35 19 29 55 0.7 200 12000 900 42
GHM50T/25M-00 50 25 3.5 35 19 29 66 0.6 200 16000 980 50
GHM50T/30M-00 50 30 4.5 35 16 26 82 0.6 200 19500 1100 59
GHM60T/20M-00 60 25 4 35 16 26 65 0.7 200 14000 1050 45
GHM60T/25M-00 60 25 4.4 35 16 26 75 0.6 200 19500 1150 55
GHM60T/30M-00 60 30 4.8 35 16 26 86 0.6 200 21500 1200 60
GHM80T/20M-00 80 20 4.4 35 16 26 72 0.7 200 20000 1200 61
GHM80T/25M-00 80 25 4.6 35 16 26 80 0.6 200 22000 1300 65
GHM80T/30M-00 80 30 4.8 35 16 26 82 0.6 200 24500 1450 68
The Main technical parameters of Wire-luffing Marine Cargo Crane
explain:
1, Computer aided design.
2, Technology from germany.
3, Base on many year`s experience of crane and harbor equipment.
4, All component are import from Eur and usa and reach a global service agreement.
5, Driven by closed hydraulic syetem and adopt standardized components.
6, Suitable for all kinds of ships and low power consumption.

Model
Hoist cap

working radius
Luffing height
Hoisting speed
Luffing time
Slewing speed
Motor power
weight total
Dead weight
SWL
Max B
Max A		           M max N
max
T m
m		 H+K 100%load
Low(m/min)		 40%load
High(m/min)		 sec r/min KW Knm Kn T
GHM25T/20M-00 25 20 2.5 35 23 40 42 1 110 6600 630 37
GHM25T/25M-00 25 25 3 35 23 40 52 1 110 9000 670 39
GHM25T/30M-00 25 30 3.5 35 23 40 60 0.9 110 10600 680 40
GHM25T/35M-00 25 35 3.5 35 23 40 75 0.8 110 11600 720 45
GHM25T/40M-00 25 40 4 35 23 40 80 0.7 110 13200 860 50
GHM30T/20M-00 30 20 2.5 35 23 40 50 1 110 7500 630 36
GHM30T/25M-00 30 25 3 35 23 40 56 1 132 10000 700 40
GHM30T/30M-00 30 30 3.5 35 23 40 60 0.9 132 12000 760 45
GHM30T/35M-00 30 35 3.5 35 23 40 75 0.8 132 15000 860 50
GHM30T/40M-00 30 40 4 35 23 40 83 0.7 132 17500 900 55
GHM40T/20M-00 40 40 3.5 35 23 40 50 0.9 160 9700 700 40
GHM40T/25M-00 40 25 3.5 35 23 40 55 0.8 160 13000 750 42
GHM40T/30M-00 40 30 3.5 35 23 40 75 0.7 160 16000 860 50
GHM40T/35M-00 40 35 4.5 35 23 40 76 0.8 160 18500 870 54
GHM45T/20M-00 45 20 3.5 35 23 40 75 0.7 160 11000 710 44
GHM45T/30M-00 45 30 4.5 35 19 29 75 0.6 160 18000 880 52
GHM50T/20M-00 50 20 3.4 35 19 29 55 0.7 200 12000 900 42
GHM50T/25M-00 50 25 3.5 35 19 29 66 0.6 200 16000 980 50
GHM50T/30M-00 50 30 4.5 35 16 26 82 0.6 200 19500 1100 59
GHM60T/20M-00 60 25 4 35 16 26 65 0.7 200 14000 1050 45
GHM60T/25M-00 60 25 4.4 35 16 26 75 0.6 200 19500 1150 55
GHM60T/30M-00 60 30 4.8 35 16 26 86 0.6 200 21500 1200 60
GHM80T/20M-00 80 20 4.4 35 16 26 72 0.7 200 20000 1200 61
GHM80T/25M-00 80 25 4.6 35 16 26 80 0.6 200 22000 1300 65
GHM80T/30M-00 80 30 4.8 35 16 26 82 0.6 200 24500 1450 68
The Main technical parameters of Wire-luffing Marine Cargo Crane
explain:
1, Computer aided design.
2, Technology from germany.
3, Base on many year`s experience of crane and harbor equipment.
4, All component are import from Eur and usa and reach a global service agreement.
5, Driven by closed hydraulic syetem and adopt standardized components.
6, Suitable for all kinds of ships and low power consumption.

Model
Hoist cap

working radius
Luffing height
Hoisting speed
Luffing time
Slewing speed
Motor power
weight total
Dead weight
SWL
Max B
Max A		           M max N
max
T m
m		 H+K 100%load
Low(m/min)		 40%load
High(m/min)		 sec r/min KW Knm Kn T
GHM25T/20M-00 25 20 2.5 35 23 40 42 1 110 6600 630 37
GHM25T/25M-00 25 25 3 35 23 40 52 1 110 9000 670 39
GHM25T/30M-00 25 30 3.5 35 23 40 60 0.9 110 10600 680 40
GHM25T/35M-00 25 35 3.5 35 23 40 75 0.8 110 11600 720 45
GHM25T/40M-00 25 40 4 35 23 40 80 0.7 110 13200 860 50
GHM30T/20M-00 30 20 2.5 35 23 40 50 1 110 7500 630 36
GHM30T/25M-00 30 25 3 35 23 40 56 1 132 10000 700 40
GHM30T/30M-00 30 30 3.5 35 23 40 60 0.9 132 12000 760 45
GHM30T/35M-00 30 35 3.5 35 23 40 75 0.8 132 15000 860 50
GHM30T/40M-00 30 40 4 35 23 40 83 0.7 132 17500 900 55
GHM40T/20M-00 40 40 3.5 35 23 40 50 0.9 160 9700 700 40
GHM40T/25M-00 40 25 3.5 35 23 40 55 0.8 160 13000 750 42
GHM40T/30M-00 40 30 3.5 35 23 40 75 0.7 160 16000 860 50
GHM40T/35M-00 40 35 4.5 35 23 40 76 0.8 160 18500 870 54
GHM45T/20M-00 45 20 3.5 35 23 40 75 0.7 160 11000 710 44
GHM45T/30M-00 45 30 4.5 35 19 29 75 0.6 160 18000 880 52
GHM50T/20M-00 50 20 3.4 35 19 29 55 0.7 200 12000 900 42
GHM50T/25M-00 50 25 3.5 35 19 29 66 0.6 200 16000 980 50
GHM50T/30M-00 50 30 4.5 35 16 26 82 0.6 200 19500 1100 59
GHM60T/20M-00 60 25 4 35 16 26 65 0.7 200 14000 1050 45
GHM60T/25M-00 60 25 4.4 35 16 26 75 0.6 200 19500 1150 55
GHM60T/30M-00 60 30 4.8 35 16 26 86 0.6 200 21500 1200 60
GHM80T/20M-00 80 20 4.4 35 16 26 72 0.7 200 20000 1200 61
GHM80T/25M-00 80 25 4.6 35 16 26 80 0.6 200 22000 1300 65
GHM80T/30M-00 80 30 4.8 35 16 26 82 0.6 200 24500 1450 68
For the technical parameters,please contact us.

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Shanghai Guanhai Engineering Co.,ltd
Business Type
Trading Company
Year Established
2011
Total Employees
101 - 200 People
Main Markets
North America, South America, Eastern Europe
Contact Supplier Request Quote Chat Now

You May Also Like

Product Categories

Related Searches

Recommended Categories

Explore top categories and find suppliers for your specific needs
Other Cranes Other Cranes
Overhead Crane Overhead Crane
Tower Crane Tower Crane
Gantry Crane Gantry Crane
Jib Crane Jib Crane
Portal Crane Portal Crane
Floating Crane Floating Crane
