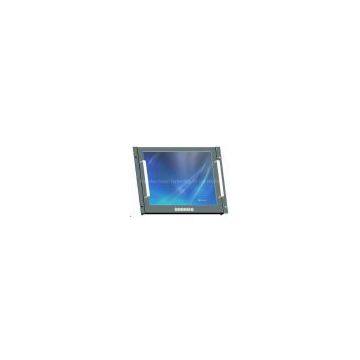

15 inch 7U Rack Mount display Monitor RCM-15

Product Description
We are a manufactuer and have our own factory, we provide many kinds of industrial panel pcs , such as panel mount industrial panel pc, rackmount industrial panel pc, high performance industrial panel pcs, from 8.4" to 19", and also provide industrial lcd monitor, fanless embedded computer,mini-itx motherboard ect

Product Feature
15" 7U Rack Mount display Monitor RCM-15

Compact 15" rack mount display monitor with 7U height
15" XGA TFT LCD Panel support 1024×768 pixels
90°tilt adjustment while mounted in rack: +45 °~ -45°
Input signal : VGA + DVI + AUDIO
250 cd/m2 brightness
OSD control keys to optimize the display
AC 100-240V wide range external ac adapter


Product Specification/Models
TFT characteristics
Display Type : 15" XGA TFT LCD
Resolution : 1024 × 768
lor : 16.2M
Luminance : 250 cd/m2
View Angle : 178°(H) , 160°(V)
Pixel Pitch : 0.297 x 0.297 mm
Contrast Ratio : 1000 : 1
Response Time : 8 ms
LCD MTBF : 50,000hrs

Available Options
Touch Screen: Resistive Type with USB/ RS232 controller
DC Power Input: Wide Range 8~30V DC input

Power Specifications
Input: 100~240VAC,50/60Hz Output: DC12V@ 5A / 60W ,external ac adapter


Mechanical and Environmental
Construction: Heavy duty steel chassis
Dimensions (WxHxD): 482.6 x 310.3 x 48 mm
Net weight: 6.0KG Gross weight: 9.0KG
Operating temperature : 0 °C to 50 °C
Storage temperature : -20 °C to 60 °C
Storage humidity: 10% to 90% non-condensing
Anti-Vibration: 17HZ-500 HZ 1G PTP
Anti-Shock: 1G / peak( 11m sec)

Input Signals
RGB Signal: D-SUB 15P Connector (female)
DC input: Aviation 2pin Plug
DVI-D Signal: DVI-D input 24pin connector (female)
Touchscreen RS232: D-SUB 9p connector (female)
Touchscreen USB : USB-A type connector (female)

Certification and Approvals
·CE/FCC/ROHS



Ordering Information
VGA + DVI input
RCM-15: 15"Rack Mount display Monitor with VGA + DVI + Audio input
RCM-15T/C: 15"Rack Mount display Monitor with VGA + DVI + Audio input, with touch screen and RS232 controller
RCM-15T/U: 15"Rack Mount display Monitor with VGA + DVI + Audio input, with touch screen and USB controller






Application
industrial
