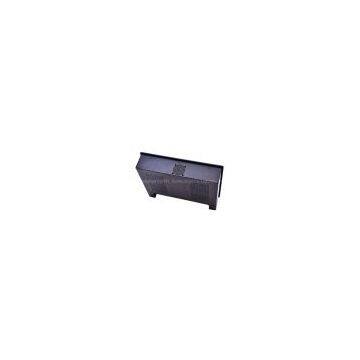

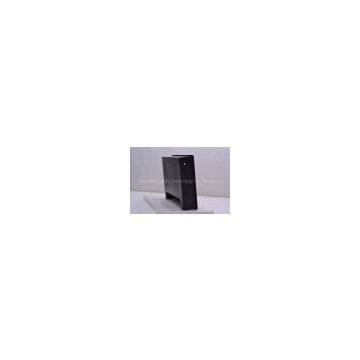

17 Inch LCD Industrial Rack Mount Panel PC 1280*1024
Negotiable
MOQ: 2 sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SUNPC
Place of Origin:
China
Model Number:
RGPC-D5217
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
15 Inch LCD Industrial Rack Mount Panel PC RGPC-D5215NegotiableMOQ: 2 -
12.1 Inch Fanless Industrial Panel PCNegotiableMOQ: 1
-
Sell IP65 8.4 Inch Atom D525 Industrial Panel PCNegotiableMOQ: 10
-
IP65 17 Inch Dual Core Atom D525 Industrial Computer 4COM,2LAN,4USBNegotiableMOQ: 1
-
Cheap 8.4 Inch LED Industrial Panel pc 800*600US$ 1 - 1MOQ: 2
Brand Name
SUNPC
Place of Origin
China
Model Number
RGPC-D5217
Product Description
We are a manufactuer and have our own factory, we provide many kinds of industrial panel pcs , such as panel mount industrial panel pc, rackmount industrial panel pc, high performance industrial panel pcs, from 8.4" to 19", and also provide industrial lcd monitor, fanless embedded computer,mini-itx motherboard ect
We are a manufactuer and have our own factory, we provide many kinds of industrial panel pcs , such as panel mount industrial panel pc, rackmount industrial panel pc, high performance industrial panel pcs, from 8.4" to 19", and also provide industrial lcd monitor, fanless embedded computer,mini-itx motherboard ect
Product Feature
17" LCD Industrial Rack mount Panel PC RGPC-D5217
Feature:
17" XGA TFT LCD Panel support 1280 × 1024 pixels
. Compact 19"Rack mount with 8U height
. Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB
. Front hardness glass protect screen ( touch option )
. 4 * COM, 1* LPT, 2 * PS/2, 1 * VGA, 4 * USB, 2* LAN, 1* AUDIO, 1* MIC
. 1 * PCI Slot, 1 * Mini PCIe slot,
. Wireless LAN with antenna (option)
17" LCD Industrial Rack mount Panel PC RGPC-D5217
Feature:
17" XGA TFT LCD Panel support 1280 × 1024 pixels
. Compact 19"Rack mount with 8U height
. Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB
. Front hardness glass protect screen ( touch option )
. 4 * COM, 1* LPT, 2 * PS/2, 1 * VGA, 4 * USB, 2* LAN, 1* AUDIO, 1* MIC
. 1 * PCI Slot, 1 * Mini PCIe slot,
. Wireless LAN with antenna (option)
Product Specification/Models
Specification:
TFT Characteristics
Display Type: 17" SXGA TFT LCD
Pixel Number: 1280 x 1024
Pixel Pitch(RGB): 0.264*0.264
Contrast Ratio : 1000: 1
Light Intensity : 300 cd/m2
Viewable Angles : 178°(H) , 178°(V)
Max Colors : 16.7MB
Response Time: 5 ms
MTBF: 50,000hrs.
System Characteristics
Processor: Intel Atom D525 Dual-core 1.8GHz processor with 667 MHz FSB Chipset Intel NM10
Memory: 1 x SODIMM DDR3 800/1066/1333 SDRAM up to 4GB. Graphic Intel GMA3150chipset
Storage : 1 x 2.5" SATA HDD / SSD/ 1 compact flash card slot Audio Realtek ALC662,5.1 Channel surround Audio
USB Port: 4 x USB2.0
Ethernet : 10/100/1000M Ethernet
VGA Port: 1 x VGA Connector
Speakers : Optional
Serial Port : 4 x COM ( 3 x RS232,1 x RS232/422/485)
Expansive Slot : 1 x PCI, 1 x Mini PCIe
KB & Mouse: 1 x PS2 port
Watchdog Timer: 255Levels,1-255sec.
Available Options
Touch Screen: 5 wire Resistive Wireless
LAN Meet IEEE802.11b/gstandard.
DC Power Input: DC 8 -30V
Speakers: 2
I/O Connector
PS/2: 1 x PS2 for KB/ Mouse
Lan 2 x 100/1000M Lan port(RJ-45) )
VGA: 1 x VGA
USB: 4 x USB2.0
RS-232: 4 x COM( 3XRS232,1X RS422/485)
Power Switch: 1 x Power Switch,1xReset switch
DC Input: 1 x Lockable
DC Input connector
Audio 1 x Lin-out / Mic-in
Mechanical and Environmental
Construction Heavy duty steel chassis enclosure
Storage humidity 10% to 90% non-condensing
Operating temperature 32°F~125°F(0°C to 50°C)
Anti-Vibration 17 to 500Hz 1G PTP
Storage temperature: -4°F~140°F(-20°C to 60°C)
Dimensions(WxHxD :322 x 247.5 x 71mm
Anti-Shock 1g/peak(11ms)
Weight Net:10.5KG,Volume Gross:13.5KG
Power Specification
Output DC12V@ 8A / 96W, external AC Power Adapter Input 100~240VAC,50/60Hz
Certification CE/FCC/ROHS
Ordering Information
RGPC-D5217T: 17" XGA Rack Mount Industrial Panel PC,support Intel Atom D525 Dual-core 1.8GHz Processor, with 17" 5 wire resistive touchscreen, 320G HDD,2G DDR3 RAM, DC12V power supply
Optional:
Storage: 16G SSD/32G SSD/8G CF card
Wireless LAN: Wifi
Power supply: DC8-30V
Speakers: 2
Other Information
-- Catherine
Sales supervisor
Shenzhen SunPc Technology Co., LTD
Add: Xin'an'ge building,Bao'an 7th district,Shenzhen city,China 518000
Tel:
Specification:
TFT Characteristics
Display Type: 17" SXGA TFT LCD
Pixel Number: 1280 x 1024
Pixel Pitch(RGB): 0.264*0.264
Contrast Ratio : 1000: 1
Light Intensity : 300 cd/m2
Viewable Angles : 178°(H) , 178°(V)
Max Colors : 16.7MB
Response Time: 5 ms
MTBF: 50,000hrs.
System Characteristics
Processor: Intel Atom D525 Dual-core 1.8GHz processor with 667 MHz FSB Chipset Intel NM10
Memory: 1 x SODIMM DDR3 800/1066/1333 SDRAM up to 4GB. Graphic Intel GMA3150chipset
Storage : 1 x 2.5" SATA HDD / SSD/ 1 compact flash card slot Audio Realtek ALC662,5.1 Channel surround Audio
USB Port: 4 x USB2.0
Ethernet : 10/100/1000M Ethernet
VGA Port: 1 x VGA Connector
Speakers : Optional
Serial Port : 4 x COM ( 3 x RS232,1 x RS232/422/485)
Expansive Slot : 1 x PCI, 1 x Mini PCIe
KB & Mouse: 1 x PS2 port
Watchdog Timer: 255Levels,1-255sec.
Available Options
Touch Screen: 5 wire Resistive Wireless
LAN Meet IEEE802.11b/gstandard.
DC Power Input: DC 8 -30V
Speakers: 2
I/O Connector
PS/2: 1 x PS2 for KB/ Mouse
Lan 2 x 100/1000M Lan port(RJ-45) )
VGA: 1 x VGA
USB: 4 x USB2.0
RS-232: 4 x COM( 3XRS232,1X RS422/485)
Power Switch: 1 x Power Switch,1xReset switch
DC Input: 1 x Lockable
DC Input connector
Audio 1 x Lin-out / Mic-in
Mechanical and Environmental
Construction Heavy duty steel chassis enclosure
Storage humidity 10% to 90% non-condensing
Operating temperature 32°F~125°F(0°C to 50°C)
Anti-Vibration 17 to 500Hz 1G PTP
Storage temperature: -4°F~140°F(-20°C to 60°C)
Dimensions(WxHxD :322 x 247.5 x 71mm
Anti-Shock 1g/peak(11ms)
Weight Net:10.5KG,Volume Gross:13.5KG
Power Specification
Output DC12V@ 8A / 96W, external AC Power Adapter Input 100~240VAC,50/60Hz
Certification CE/FCC/ROHS
Ordering Information
RGPC-D5217T: 17" XGA Rack Mount Industrial Panel PC,support Intel Atom D525 Dual-core 1.8GHz Processor, with 17" 5 wire resistive touchscreen, 320G HDD,2G DDR3 RAM, DC12V power supply
Optional:
Storage: 16G SSD/32G SSD/8G CF card
Wireless LAN: Wifi
Power supply: DC8-30V
Speakers: 2
Other Information
-- Catherine
Sales supervisor
Shenzhen SunPc Technology Co., LTD
Add: Xin'an'ge building,Bao'an 7th district,Shenzhen city,China 518000
Tel:
