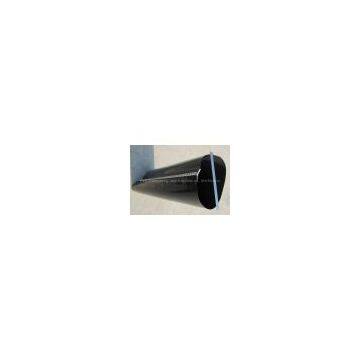

RSW Wraparound sleeve is mainly used for repairing outer/inner sheath/core damages on a HV cable and LV cable. It is made from cross-linked polyolefin which equals or exceeds the material properties of the original cable jacket. They can also be used for protecting against corrosion on metallic parts of the cable that are exposed to the outside.
Features:
Material: cross-linked polyolefin, inner coated with hot-melt adhesive
Standard color: black
Highlights: easy operation, wide range of selection, fit every occasion, excellent water repellency
Operating temperature:-40~+65°
Shrink temperature:200°
Specification:
|
Selection |
Supply Size |
Diameter after Being Shrunk |
Cable’s diameter (mm) |
|
RSW 28/6 |
22 |
6 |
7~15 |
|
RSW 36/10 |
36 |
10 |
12~20 |
|
RSW 50/15 |
50 |
15 |
18~40 |
|
RSW 60/18 |
60 |
18 |
20~50 |
|
RSW 70/22 |
70 |
22 |
25~60 |
|
RSW 80/25 |
80 |
25 |
30~70 |
|
RSW 100/30 |
100 |
30 |
35~90 |
|
RSW 135/38 |
135 |
38 |
40~120 |
|
RSW 164/45 |
164 |
45 |
50~150 |
|
RSW 185/55 |
185 |
55 |
65~165 |
|
RSW 200/60 |
200 |
60 |
80~180 |
|
RSW 220/65 |
220 |
65 |
90~200 |
|
RSW 240/70 |
240 |
70 |
100~220 |
|
RSW 260/75 |
260 |
75 |
120~240 |
|
RSW 280/80 |
280 |
65 |
140~260 |
|
RSW 300/85 |
300 |
65 |
160~280 |
Length: 250mm,500mm,750mm,1000mm,1500mm,2000mm
Technical Data
|
Item |
Test Method |
Typical Data |
|
Tensile strength |
ASTM D2671 |
≥ 17MPa |
|
Tensile strength after aging |
ASTM D2671 |
≥ 14MPa |
|
Elongation at break |
ASTM D2671 |
≥ 350% |
|
Elongation at break after aging |
ASTM D2671/150℃, 168hrs |
≥ 300% |
|
Density |
ASTM D792 |
0.94g/cm3 |
|
Longitudinal shrinkage |
UL224 |
< 5% |
|
Dielectric strength |
IEC243 |
≥ 36kV/mm |
|
Volume resistivity |
IEC93 |
≥ 10 14 Ω · cm |
|
Copper stability |
ASTM D2671 |
Pass |
|
Water absorptive |
ISO 62/23℃, 14days |
< 0.15% |
|
Low Temperature Flexibility |
ASTM D2671 |
No cracking |
|
Resistance to fungus and decay |
ISO 846 |
Pass |
