Product Details
Brand Name | Jingfeng | Place of Origin | China | |
Model Number | CW-6 |
Product Description

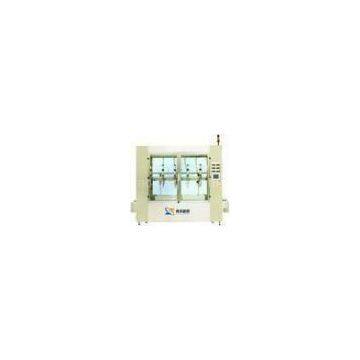

120 L / Minute Automatic Scale Fixed-quantity Liquid Bottle Filling Machine / Machinery
Description:
1. Automatic Scale Fixed-quantity
2. Applicable industries: Food, pharmaceuticals, daily chemical, pesticide and other industries.
 This machine\'s each unit consists of High precision weighing transducer, control instruments and filling speed control valves, can realize fast slow speed regulation filling.
Applications:
Applicable industries: Food, pharmaceuticals, daily chemical, pesticide and other industries.
Specifications:
Suitable bottle diameter |
Minimum 140×200×320mm Maximum 260×290×500mm |
Measure precision |
±0.2% |
Volume |
5~30kg |
Production capacity |
≤650barrel/hour |
Air pressure |
0.5-0.7Mpa |
Air consumption |
120L/minute |
Power supply |
220V,50Hz |
Total Power |
1.0KW |
Weight |
520KG |
Overall Dimension |
2950×1300×2250(L×W×H)mm |
Competitive Advantage:
Technical performance:
The filling process is under control of PLC. All operations complete on the touching screen. It is equipped with weighing feedback system. It is an ideal kind of weighing filling equipment within chemical, daily chemical, food, medicine, cosmetic and pesticide industry etc.
It has properties of reliable and stable performance. High efficiency, good adaptability, changing the measuring specification in minutes (no need to change any components, just adjust), eco-friendly outer frame, filling without drop and leak. It is the most idealess large dose filling machine with weighing requirements.
Performance advantages:
1. Control system----Mitsubishi PLC control system, random minitrim filling measurement
2. Control panel---- Color touching screen, easy-operated, stable and reliable
3. Function improvement----The feeding nozzle is equipped with filling blocker. This machine can realize diving filling according to the material properties. (This function can be selected)
4. Real-time alarm----Automatic alarming, when the fault happens, automatic stopping and alarms when the system appears serious breakdown.
5. Electrical elements----Adopting international famous brand to ensure the remarkable quality, stability and high precision.
Machine elements----The parts contacted with the material use the 316 high-quality stainless steel and non-poisonous, anti-corrosive PTEF hose. Other machine parts use the 304 high-class stainless steel.
6. Counting detection----Real- time counting, reflecting the output directly.
7. Function improvement----We have designed intelligent weighing feedback system to realize the unmanned debugging function. (We having obtained the China patent, counterfeiting not allowed)
8. Maintenance condition----Fully accords to the GMP requirements, easy to disassemble and clean.
9. Conveying design----Adopting rollway conveying model, saving time and labor.
