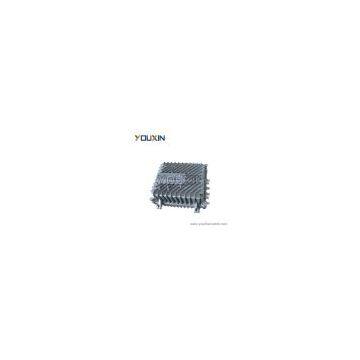

Outdoor Optical Receiver (two Output, Return Path,PHILIPS Module)
Negotiable
MOQ: 1 Case (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
YOUXIN
Place of Origin:
China
Model Number:
OR5200-R(1mW)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Outdoor Optical Receiver （ Four Output, PHILIPS Module)NegotiableMOQ: 1 Case -
Outdoor Optical Receiver （ Four Output, Return Path,PHILIPS Module)NegotiableMOQ: 1 Case
-
Outdoor Optical Receiver （ Four Output, Chinese GaAs Module)NegotiableMOQ: 1 Case
-
Outdoor Optical Receiver （ Four Output, Return Path,Chinese GaAs Module)NegotiableMOQ: 1 Case
-
CATV Indoor Optical ReceiverNegotiableMOQ: 1 Case
Brand Name
YOUXIN
Place of Origin
China
Model Number
OR5200-R(1mW)
Optical receiver with E-O pin diode and PHILIPS amplifier module, 2 output ports, forward path frequency 87-862MHz, rated output level 108dBuV (input optical power -2dBm), return path frequency 5-65MHz, return path transmitter 1mW, diplex filter 65/87 (other freq. split is available), imperial F female port, FC/APC or SC/APC connector, waterproof housing, AC135~250V (power cord with EURO (2 pole with GND) or USA standard plug (3 pole)) or 35~90V.(SNMP management is optional)
Features : Download DOC:![\"OR5200\"]()
OR5200
◇ High quality E-O PIN-diode receiving module
◇ Four-stage input optical power LED display
◇ Wide range of input optical power
◇ PHILIPS Power Doublers output module
◇ Plug-in splitter(tap) in output and plug-in return path module
◇ Local and remote powering
◇ Weatherproof and RF-screened die-cast housing
Description
OR5200 Series Field Optical Receiver are the most common transmission equipment of CATV HFC, which mainly used in long distance optical fiber transmission for TV video signal, digital TV signal, telephone voice signal and data signal(compressed data).
Since our first CATV optical receiver come to market in 1995, we have done deep research on all kinds of technical performance parameters for more than 10years, accumulating a lot of experience in product development and engineer in practice. The internal circuit and external structure are much better and the performance is upgraded.
