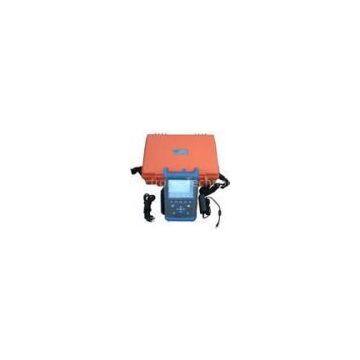

Chinese OTDR AV6413

Description

Chinese mini plam high resolution OTDR with different, different wavelength, dynamic range 24/32/35/37/38/40/42dB,event dead zone <1.6/2.5/3.0m, attenuation dead zone. Please choose the following module

Features

1.24/32/35/37/38/42/40dB high dynamic range, enabling extra-long distance measurement

2.0.1m sample resolution with 65535 sampling points

3.1.6m extra-short event dead zone

4.Large color LCD display, touch screen operation

5.High accuracy and stability

6.Auto measuring with high sped, one-button operation

7.Large internal memory for data storage

8.Write/read file in Bellcore GR196 file format

9.Intelligent battery capacity display

10.Battery operation life over 8 hours

11.Unique USB interface for connectivity and data storage

12.Attached with trace analyzing software, professional report can be generated immediately

13.Unique function of updating system online, returning to factory is unnecessary

Parameter

Item Specification

Distance range 1.6, 3.2, 8, 16, 32, 64, 128, 256, 512  (SM)

1.6, 3.2, 8, 16, 32, 64, 128  (MM-1300nm)

1.6, 3.2, 8, 16, 32  (MM-850nm)

Pulse width 10, 80, 160, 320, 640, 1280, 2560, 10240, 20480 (SM)

10, 80, 160, 320, 640, 1280, 2560, 10240 (MM-1300nm)

10, 80, 160, 320, 640, 1280 (MM-850nm)

Sampling resolution 0.1m~32m

Group refractive index setting 1.00000 to 2.00000, in 0.00001 steps

Vertical scale(/div) 0.1dB, 0.2dB, 0.5dB, 1dB, 2dB, 5dB, 8dB,

Resolution Sampling resolution: max 0.1m

Distance read-out resolution: 0.0001km

Loss read-out resolution: 0.001dB

Sampling points 65535

Distance accuracy ±(1m+sample space+ measurement distance x 0.01%)

(exclude uncertainty of fiber IOR)

Loss accuracy ±0.02dB/km(SM); ±0.2dB/km(MM)

Display 640x480, 7.7inch color LCD (touch screen)

Interface USB, RS232, Printer, Keyboard

Optical connector FC/UPC (universal connector, option)

Power supply DC:17~22V/3A;

AC adaptor: 100~240V/1.7A, 50~60MHz;

Built-in lithium battery: >8 hours;

Working environmental Operation temperature:0~50℃ (charging: 5~40℃)

Storage temperature: -40~70℃ (exclude battery)

Relative humidity: 5~95% RH  (no condensation)

Dimension 280x208x95mm

Weight 2.7kg

Application

FTTH, LAN, PON & Optical CATV

Local ring net

Optical fiber communication system

Optical fiber test equipment

Optical fiber sensor

More visit  website: 3w(dot)adkoptic(dot)com or email to: adkoptic(at)adkoptic(dot)com.

Dimension

280x208x95mm

Minimum Order

1pcs

Weight

2.7kg

Delivery Time

5~7days

Packaging

By standard export carton

Supply Ability

1000pcs/month
