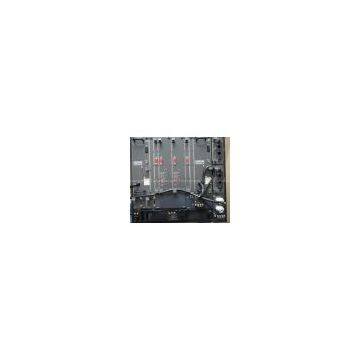

Yokogawa Models AFE10S AFE10D Field Control Unit Duplexed Field Control Unit
(19" Rack Mountable Type)
GENERAL
This GS covers the hardware requirements for the Field Control Unit (FCU), the intelligence of the field control station (FCS).
HARDWARE SPECIFICATIONS
For the installation specifications and environmental conditions common to the systems, refer to “System Specifications (GS 33G01B10-01E).”
Processor
VR5432 (133 MHz)
Main Memory Capacity
Standard Type (AFE10): 8 Mbyte
Memory Protection During Power Failure
Battery
Battery Back-up for Main Memory: Max. 72 hours
Battery Recharge Time: Min. 48 hours
FCU Status Contact Output
2 terminals (NC, C)
Contact Points open during FCU failure
Contact Rating: 30 V DC, max. 0.3 A
Communication Interface
V net Interface: Dual-redundant
RIO bus interface: Dual-redundant or Single
No. of Nodes Connectable
Max. 8 Nodes
Power Supply
(specify with Suffix Codes)
100-120 V AC, 50/60 Hz
220-240 V AC, 50/60 Hz
24 V DC
Power Consumption
Control Processor :
100-120 V AC:
250 VA (AFE10S)
400 VA (AFE10D)
220-240 V AC:
250 VA (AFE10S)
410 VA (AFE10D)
24 V DC: 4.5 A (AFE10S)
8 A (AFE10D)
Weight
Approx. 18 kg (AFE10S)
Approx. 22 kg (AFE10D)
Mounting
19" Rack Mounting: Rack mount (8 x M5 screws)
Insulation bush (accessory)
Connection
Power Supply: M4 screw terminal connection
Grounding: M4 screw terminal connection
Contact Output: M4 screw terminal connection
Regulatory Compliance
For the detailed information of following standards, see "System Specifications (GS 33G01B10-01E)."
Safety Standards
[CSA] (for 100-120 V AC power supply)
[CE Mark] (for 220-240 V AC power supply)
EMC Conformity Standards
[CE Mark] (for 220-240 V AC and 24 V DC power supply)
[C-Tick Mark] (for 220-240V AC and 24 V DC power supply)
STANDARD SOFTWARE ACCESSORIES
The following software license is supplied with the FCU.
• AFE10S, AFE10D: SFE1100 Standard Control Functions
For SFE1100 Specifications, refer to “FCS Field Control Station Standard Control Function Software (GS 33G03K20-01E).”
ORDERING INFORMATION
• Specify model and suffix code.
• When ordering separate from HP9000 Series, specify HP9000 Series ID no. for it to be bundled with.
AFE10S AFE10S-H4114 AFE10S-H4124 AFE10S-H4144 AFE10S-H2114 AFE10S-H2124 AFE10S-H2144
AFE10D AFE10D-H4114 AFE10D-H4124 AFE10D-H4144
