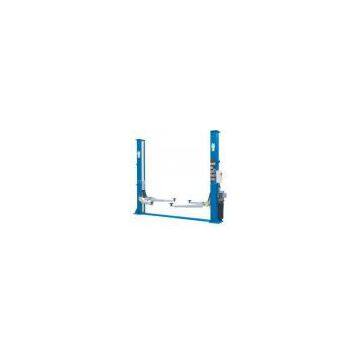

LM2EF-35/LM2EF-40 (Two Post Lift)

Features:
STRONG
1,5mm "internatonal standard" column steel plates made in Shanghai;
2,8mm brace arm and 6mm internal sliding column, never deform;
3,Wearable, Anti-High temperature, high strength oiliness macromolecule nylon slide block;
4,Require no less than 150mm cement on the ground, at least C25
SAFETY
5,Double safe antiskid device, from column ladder safe to close protection by dynamic hydraulic pressure, single side electrical release, ensure double safe staying for vehicles;
6,ABS control box, 24V operation system, manual lock release for emergency lowering valve;
7,Imported PLC weak electricity control board, energy saving 4%, endurability 5 times higher;
8,Adopt electromagnet release, more safer and reliable;
9,Adopt twin arms winding oil pipe, oil pressure safety up to 5 times;
10,Equipped crash-proof pad to protect car door;
11,Optional revolving suppot leg and connected sleeve support leg;
12,Gum rubber support leg pad, the endurability 3 times higher than the common materials;
13,Equipped dust cover, enhance the lift time of steel rope and chain;
14,Endure max 5T destructive testing, fulfill 3.5T/4T actual working conditions;
15,Chain style pulling device
QUALITY
16,Total mold tooling technology, to ensure the conformity of both many  a holes and welding places;
17,Digital control raw materials processing center ensure the consistency;Optional revolving support leg and connected sleeve support leg;Gum rubber support leg pad, the enfurability 3 times higher than the common materials
POWER
18,Double cylinder dynamic hoist drive device, capacity is more than 4 ton;Aluminum pump system;
19,Mechanical lowering control hydraulic pressure configuration, simple, endurable and reliable

Technical Data:

Mode:             LM2EF-35                   LM2EF-40
Structure         floor plate                floor plate
Feature   Electromagnetic release            Electromagnetic release
Capacity(kg)     3500                        4000
Lift height(mm)  1800                        1800
Rise time(s)      50                         52
Drop time(s)      22                         22
Power of motor(kw)  2.2                      2.2
Power supply(v)    380/220                   380/220
Machine Height(mm)  2832                     2832
Machine Width(mm)   3166                     3166
Frame Width(mm)     3420                     3420
