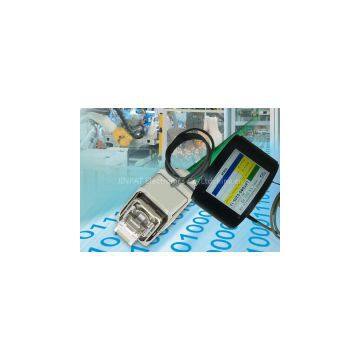

USB slipring(LPT060-U2)

Name: USB slipring(LPT060-U2)
Brand: JINPAT
Availability: InStock

FOB Price

US$ 450 - 450 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JINPAT		Place of Origin	China
Model Number	LPT060-U2

We JINPAT USB slip ringLPT060-U2can transmit theUSB2.0. We can also produce the slip ring transmitUSB3.0.

Features

60 mm through-bore

Compact 135mmoutside diameter

Modular design - a single module can have: one 50 ampsring; two

30 amps rings; one, two or three 10 amps rings or six 5amps signal

Up to 20-50 amps circuits

Speeds up to 500 rpm continuous

Steel bearings and machined shaft and housing for harsh environments

Collar mounting is standard; flange mounting is optional

Various lead exits are available

Silver plated rings are standard. Gold plated optional.

Continuous 360 degree rotation of power or data signals

Sealed unit

Advantage

Transfers control and data signals

Fiber brush technology provides maintenance-free operation(no lubrication required)

Modular design meets special requirements throughoff-the-shelf manufacturing techniques

Customized configurations for your application
