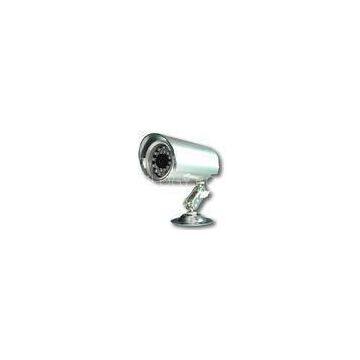

Double glass 24 X D5 LED, 20M IR 3.6MM LENS METAL CASING IP66 CCTV IR HD CCTV Cameras
* 1/3 SONY 673 DSP + EFFIO-E DSP 700TVL high resolution
* 0.3 LUX /color illumination, 0 LUX IR ON
* 24 X D5 max power 860Nm IR LED, 20 meters IR distance
* 60# full metal casing, IP66 waterproof level
* 3.6mm MTV lens, 6/8/12/16mm optional
* Special waterproof bracket included
* Double glass, anti-fog design
Specifications:
|
Model |
BS-308D |
|
|
Filter |
Double Layers Crystal |
|
|
Sensor |
1/3″ Sony Super Had II |
|
|
Signal |
PAL |
NTSC |
|
Pixels |
752(H)×582(V) 570K |
689(H)×496(V) 480K |
|
Line |
600TVL |
|
|
Illumination |
0Lux / IR ON |
|
|
Lens |
f= 3.6 / 6 / 8 /12 /16 mm Lens Optional |
|
|
IR LED |
24pcs Φ5mm High Power IR LED |
|
|
IR Distance |
20 Meter |
|
|
Vertical |
50Hz |
60Hz |
|
Horizontal |
15.625KHz |
15.734KHz |
|
Clock |
28.375MHz |
28.636MHz |
|
Scanning |
2:1 Interlace |
|
|
S.N.R |
≥50dB |
|
|
E.S |
1/50-1/100,000s |
1/60-1/100,000s |
|
W.B |
Auto Tracking |
|
|
B.L.C |
ON |
|
|
A.G.C |
ON |
|
|
Gamma |
0.45 |
|
|
Video Output |
1Vp-p, 75Ω |
|
|
IP Rating |
IP66 |
|
|
Bracket |
waterproof Especial Bracket |
|
|
Power |
DC/9-18V |
|
|
Dimension |
18*12*10cm |
|
|
Volume Weight |
0.5kg |
