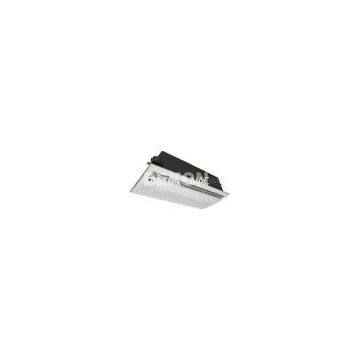

One way cassette fan coil unit

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

DEKON

Place of Origin

China

Water chilled One way ceiling concealed cassette fan coil unit 4tube-FCU 300CFM(FP-51O-4)

model	FP-34O-4	FP-51O-4	FP-68O-4	FP-85O-4
power supply	220V,50Hz,1Ph
air volume	H	m3/h	340	510	680	850
M	280	380	515	660
L	180	260	340	430
static pressure	Pa
cooling capacity	TH	H	W	1350	2030	2700	3380
BTU/h	4606	6926	9212	11533
SH	W	1000	1520	2080	2450
BTU/h	3412	5186	7097	8359
TH	M	W	1130	1850	2250	2790
W	770	1200	1540	1860
SH	L	W	1040	1540	1860	2190
W	630	920	1180	1410
heating capacity	H	W	1080	1620	2160	2700
M	W	780	1108	1574	1960
L	W	516	710	1120	1402
noise	H	0Pa	dB(A)	37	39	41	43
power input	H	0Pa	W	37	52	62	76
waterflow volume	Cooling	m3/h	0.23	0.35	0.46	0.58
waterflow volume	heating	0.09	0.14	0.19	0.23
water pressure dropping	cooling	kPa	7	7.3	13	14.6
heating	4.2	4.4	7.5	8.7
dimension of water(in & out)connection pipe	cooling/heating	ZG1/2"	ZG1/2"	ZG1/2"	ZG1/2"
ZG1/2"	ZG1/2"	ZG1/2"	ZG1/2"
coil	type	high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe	mm	Ā26	Ā26	Ā26	Ā26
net dimension	unit	L×W×H mm	971413236	971413236	971413236	971413236
panel	104446831
net weight	unit	kg	22	22	23	23
panel	4
