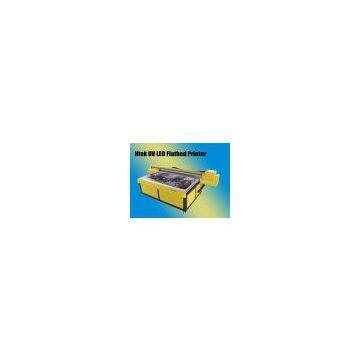

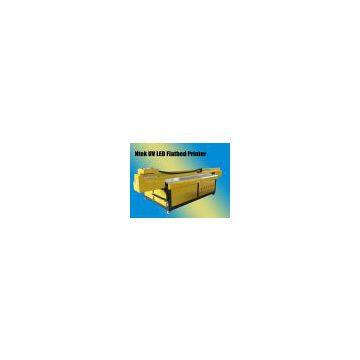

Ntek Large Format Flatbed Printer YC-2030

Specification 1 Product Model : UV2030 2 Printhead Technology : Drop-on demand piezo electric 3 Printhead control : Printhead voltage is software adjustable 4 Printhead Type: EPSON DX5 Printhead 5 Printhead Number : 1/2 6 Ink Characteristics : UV Curing Ink 7 Ink reservoirs : Refillable on the fly while printing/1000ml per colour 8 LED UV Lamp: more than 20000-hours life 9 Color Control : ICC based color,curves and density adjustment 10 Printhead arrangement : CMYK/C M Y K LK LLK LC LM CMYKW/C M Y K LK LLK LC LM W CMYK*2/C M Y K LK LLK LC LM *2 11 Printhead Cleaning System : Automatic Cleaning System, Automatic Dry-preventing System 12 Guide Rail : Taiwan HIWIN(THK optional) 13 Working Table : Vacuum Sucking 14 Printing Size: UV2030:2.0*3.0m 15 Print Interface: USB2.0 16 Media Thickness : Within 100mm/ higher can be tailored 17 Printing Resolution&Speed : 360x720DPI(4pass) 25Sq.m/h(2 EPSON DX5 Printhead) 360x1080DPI(6pass) 20Sq.m/h(2 EPSON DX5 Printhead) 720x720DPI(8pass) 15Sq.m/h(2 EPSON DX5 Printhead) 720x1080DPI(6pass or 12pass) 12Sq.m/h(2 EPSON DX5 Printhead) 720x1440DPI(8pass or 16pass) 6Sq.m/h(2 EPSON DX5 Printhead) 18 Life of printed image : 5 years(outdoor),10year(indoor) 19 File Format : TIFF,JPEG,Postscript,EPS,PDF etc. 20 RIP Software: Photoprint 10 or UltraPrint 21 Power Supply : 220V 50/60Hz(10%) 22 Power : 2000KW 23 Operation Environment : Temperature 20 to 30,Humidity 40% to 60% 24 Equipment Dimension : UV2030:3900(L)X3550(W)X1300(H)cm 25 Equipment Weight : UV2030:1500kg 26 Warranty : 1 year exclude the Print head,Ink filter, Ink pump 27 After-sale Service: 24-hour on-line realtime technology service
