*Equipment supplied with machine
-Digital Window for easy set-up
-Push button set-up of all machine functions
-Up to 5 recipes for saving of standard set-up
-Count of pieces needed
-Cutting Speed if desired
*Set-upof optional material pre-feeder and optional static remover
*Feedbutton for feeding material through the rollers Cut button for testingcuttingof material EmergencyStop button on panel
* Onestepping motor and induction motor for cutting and feeding
* Upper/Lower/Wingblade
* Aux.Roller Feeding Roller
* Knobfor roller lift-up
* MaterialHanger
* SafetyCover
* Owner’sManual

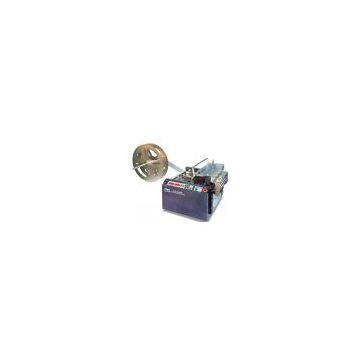

>Materialranging from 100mm to 400mm wide can be cut by four different models, KM-3100to KM-3400.
>Withthe fastest speed and precise control, the KM-3100 is able to cut variousmaterial such as Vinyl, Hose, Shrink Tube, Wire Film, Copper/Tinplate, etc.
>Applicablewith receiving the outer signal
- Cutting Material : Shrink Tube, Hose Rubber, Tin/Copper plate, Wire, Braided wire, Paper, Silicon Tube, Film, Vinyl, etc.
- Max Cutting width : 300mm
- process method : Cutting
- Feeding Cutting : 2 Driver Moter (Stepping induction)
- Power Supply : 110/220 VAC, 50/60 Hz, Single Phase
- Power consumption : 18 Wat ~ 250 Wat
- Dimension : W410mm D500mm H345mm
- Weight : 43Kg
