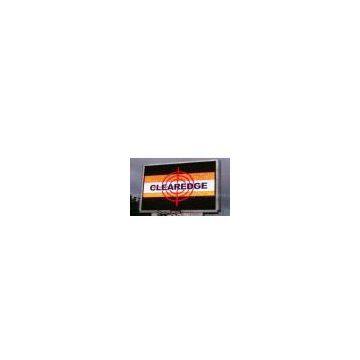

P20 / P20V Electronic Large LED Screens With Front IP65 / Rear IP43

Name: P20 / P20V Electronic Large LED Screens With Front IP65 / Rear IP43
Brand: Eachin
SKU: 147442182
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Eachin

Place of Origin:

China

Model Number:

Shenzhen Eachin Technology Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name Eachin

Place of Origin China

Delivery Time:10-15 days
Certification:CE, RoHs, ISO

P20 / P20V Electronic Large LED Screens with Front IP65 / Rear IP43

Specifications:

Outdoor full color Giant LED Display
Module	Pitch/mm	p16	p16V	p20	p20V
Module size/mm	256x128	256x128	320x160	320x160
Density of pixel/(dots/m2)	3, 906	3, 906	2, 500	2, 500
Pixel composition	2R1G1B	2R1G1B	2R1G1B	2R1G1B
Led encapsulation	DIP	DIP	DIP	DIP
Resolution of module	32X16	32X16	32X16	32X16
Main	Optimum viewing distance	≥15	≥15	≥17	≥17
View angle / °	110 H, 60 V	110 H, 60 V	110 H, 60 V	110 H, 60 V
Average power consumption/W/M2	400	450	350	400
Max power consumption/W/M2	900	950	850	900
Size of cabinet/mm	1024X768	1024X768	1280X960	1280X960
Resolution of cabinet	64x48	64x48	64X48	64X48
Weight of cabinet/kg	60	60	75	75
Driving method	Static constant current	Static constant current	Static constant current	Static constant current
Frame frequency / Hz/S	≥60	≥60	≥60	≥60
Refresh rate Hz/S	≥600	≥600	≥600	≥600
Luminance of white balance	≥6500 nits	≥7000 nits	≥6000 nits	≥6500 nits
Operation of Environmental Temperature/℃	below 30 to above 50
IP rating	Front, IP65;Rear, IP43
Working vlotage
