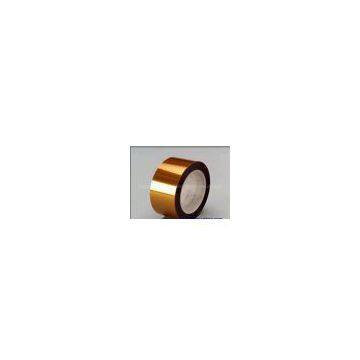

Product Name:Polyimide Stretch film
BOPI (Biaxial Oriented Polyimide film, similar to Kapton HN) is achieved by polycondensation of PMDA and ODA in strong polar solvents, through the process of film forming, and then being stretched and Oriented by biaxial during the course of imine at high temperature. BOPI film (similar to Kapton HN) is a special kind of polyimide film. Because of biaxial orientation process, BOPI film possesses higher physical, chemical, and electrical properties. It performs successfully in low & high temperature as range of temperature from -452F(-269c) to +500F(+260c) and can be exposed at +752F(400c) in short time. It is widely used as insulation material in F~H class electric motors, electric locomotive, high temperature cables, backing or cover film of FPCB (flexible printed circuit) applications, aerospace industries and so on.
Technic Index
|
Item |
Properties |
Unit |
Values |
||||||
|
μm |
12.5 |
25 |
30 |
40 |
50 |
75 |
|||
|
1 |
Density |
g/cm3 |
|
1.42±0.02 |
|||||
|
2 |
Tensile Strength |
MD ≥ |
MPa |
160 |
185 |
175 |
160 |
155 |
150 |
|
TD ≥ |
155 |
170 |
160 |
150 |
140 |
135 |
|||
|
3 |
Elongation at rapture ≥ |
% |
60 |
||||||
|
4 |
Shrinkage (only for reference) |
150°C 30min ≤ |
% |
0.15 |
|||||
|
400°C 30min ≤ |
2.0 |
||||||||
|
5 |
Breakdown Strength |
Average |
MV/m |
210 |
210 |
190 |
170 |
160 |
150 |
|
Individual |
190 |
190 |
180 |
160 |
135 |
120 |
|||
|
6 |
*Surface Resistance 200°C |
Ω |
≥1.0×1013 |
||||||
|
7 |
*Volume Resistance 200°C |
Ω·m |
≥1.0×1010 |
||||||
|
8 |
*Dielectric Constant (48~62Hz) |
--- |
3.5 |
||||||
|
9 |
*Loss Tangent (48~62Hz) |
--- |
≤0.004 |
Application
Electrical and Electronics, circuit board manufactureH grade electric engine, transformer coil and capacitor insulation
wrapping up in high-temperature, high-voltage conditionSMT thermal resistance, golden finger protection of PCB
boardHigh temperature resistance and waterproof for electronic transformer, relay
Characters:
Higher mechanical strength, better dielectric strength with thinner insulation ply;
Excellent heat resistance ,used as class- H insulation and can work for a long term at180°C but short time at 260°C;
Good flexibility, better tear resistance and excellent workability, and can be glued on thedifferent-sized workpieces;
Self-sticking and good bonding strength , no removal after stripping off;
Different thickness and width to meet customers’ specific requirements;
About Factory
Jiangsu Yabao Insulation Material Co., Ltd. was established in 1986, specializing
in producing insulation materials: i.e.
|
Polyimide film series: |
Polyimide Film 6051 Corona-resistant Polyimide Film (CR Film) Polyimide Film with F46 (FEP) Tape |
|
Adhesive tape series |
Polyimide Film with Acrylic Adhesive Tape Polyimide Film with Silicone Adhesive Tape |
|
Composite material series |
Composite material (NHN, NMN) Mica insulation material (mica tape, mica foil and mica board). |
Packing
The tape roll and disc should be rolled up on a pipe core whose internal diameter is about 76mm, and then the tape roll and disc should be packed into a plastic bag with good sealing, and then be transported into a wooden box with damp-proof paper or into a dry and clean carton.
