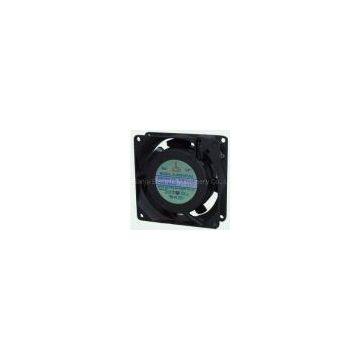

AC Axial 80mm Ball or Sleeve bearing Industrial cooling Fans, 10w 7 blade fan

Delivery Time:20-30 work day
Certification:UL, CUL, TUV, CE, CCC, ROHS, C-TICK

AC Axial 80mm Ball or Sleeve bearing Industrial cooling Fans, 10w 7 blade fan

110V AC or 220V AC 80x80x25mm AC FAN , Cooling Fan, Industrial Fan , Exhaust Fan High speed Aluminum Frame 7 blades Ball bearing or Sleeve bearing Terminal connection or lead wire

Specifications:

Detail More:

Frame Type: Aluminum painted& Plastic UL94V-0; Impeller:Thermoplastic UL94V-0 P.B.T. Bearing:Ball Bearing& Sleeve Bearing Ingress of Protection:IP44 Voltage :110V, 220V, 230V, 380V Insulation Resistance:Min.100M Ohm at 500 VDC between terminal(wire)(+)and frame Dielectric Withstand:1500VAC for 1 second between terminal(wire)(+)and frame Opetation Temperature:-20℃～85℃(Ordinary humidity Storage Temperature:-30℃～140℃(Ordinary humidity) Life Expectancy:60, 000Hours at 20℃-Ball bearing

                        30, 000Hours at 20℃-Sleeve bearing

Safety:UL, CUL, TUV, CE, CCC, ROHS, C-TICK approved

Competitive Advantage:

*Qualified, cost effective and easily operated

*Small in shape, have compact structure

*UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery

Applications:

San Ju’s fan products are utilized by all type of machines which required heat reduction systems, such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.
