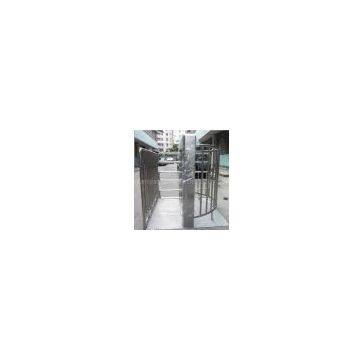

Stainless Steel Half Height Turnstile With Alarm System Function for Office Building OEM
- T/T L/C D/P D/A
- 7 days
You May Like
-
Bi-direction 304# Stainless Steel Single Arm Control Turnstile Security Systems OEM ODM
-
One-direction Zinc-plating Single Arm Programmable Control Turnstile Security Systems OEM
-
Zinc-plating Single Arm Turnstile Security Systems With Rainproof Stainless SteeI Housing
-
RFID Card 304# Stainless Steel Access Control Single Arm Turnstile Security Systems CE
-
RFID Card Numeric Control Single Arm Turnstile Security Systems ISO 9001-2008 Certified
-
RFID Card Numeric Control Single Arm Turnstile Security Systems ISO 9001-2008 Certified
Product Details
| Brand Name | Wanqiao | Place of Origin | China | |
| Model Number | WQ-TR/L/Z01 |
Product Description
Certification:CE
Stainless Steel Half Height Turnstile with Alarm System Function for Office Building OEM
Competitive Advantage:
1.1.5mm thickness 304 stainless steel
2. RFID card (IC/ID), Barcode, fingerprint, control accepted
3. CE and ISO 9001-2008 certified
4. OEM and ODM are welcome.
Description:
Half height turnstile with the following features:
1 , Self-test and alarm system function, user-friendly maintenance and use, through the master board built-in button, the device can be set up, with all kinds of IC, ID cards, Barcode, magnetic cards
2, Can be extended to small trading system to achieve charging function
3 , With a count function, at any time to control the number
4 , Can be set to normally open, normally closed mode of operation to meet the regulatory requirements
5, Using infrared sensors, with illegal entry alarm, followed by the police, the normal people by preventing the clip
6 , Having a uniform standard external electrical interface with other control devices mounted, easy integration, and through remote control and management of computer
7 , With other smart card equipment composition Card
8 , Supporting for direct access to the display channel current state of the pedestrians, guiding the proper and efficient pedestrian movement
9, Supporting the blackout floodgates in order to meet regulatory requirements
Applications:
Half height turnstile mainly applied in airport, bus station, office building, parks, attractions, exhibition hall doors, residential, etc.
Specifications:
|
Name |
Half Height Turnstile |
Model |
WQ-TR/L/Z01 |
|
Housing Size |
1400x1100x1150mm |
Passing speed |
30 person/min |
|
Housing Material |
202or304 grade stainless steel optional |
Working Voltage |
AC220V±10V, 50HZ |
|
Net Weight |
135kg |
Motor voltage |
220V |
|
Gross Weight |
165kg |
Rated Power |
80W |
|
Control type |
IC/ID/Barcode control |
Transmission |
Sine Linkage |
|
Boom length |
≤700mm |
Frequency |
50~60Hz |
|
Logic voltage |
24v |
Working temperature |
-45℃--+80℃ |
|
Working mode |
one directional or |
Operating humidity |
≤90% non-condensing |
|
Communication Interface |
RS485/RS232 |
Operation life |
≥5 million times |
