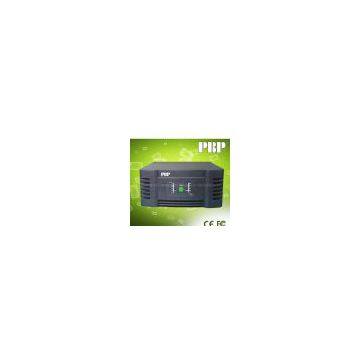

PBP LED display inverter

FOB Price

USD $88 - $88 / Piece

10 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	PBP		Place of Origin	China
Model Number	NB-Y inverter

Product Description

Product Feature.

Superior performance from CPU control technology.
Wide range of input voltage,accurate output,AVR function.
Inner-equipped protection for over-load,short-circuit,over-voltage, low-voltage over-heating etc. Easy to check with inverter condition with consice LED indication that can be upgraded to LCD. Generator compatibly and external battery connection achievable.
Intelligent battery management with protection against over-charged and over-discharged etc.

$\"go$

Technical Specifications.

Pure Sine Wave Inverter NB-Y Series Inverter
300w/400w/ 500W/600W/800W/1000W

1.Input

Rated Capacity	300W	400W	500W	600W	800W	1000W
Input Voltage	110V Models	220V Models
Nominal Voltage	100/110/115/120V Selectable	200/220/230/240V Selectable
Input Frequency	47Hz ~ 65Hz, 50/60Hz auto-sensing
Efficiency	95% (Normal mode)
Noise Filtering	Fulltime EMI/RFI filtering
Over current protection	By re-settable over current protecto
Voltage Range	-35% ~ +25% for selected nominal voltage.
AVR Range (2 Bucks, 2 Boosts)	Enhanced Buck: +15% of selected nominal voltage Buck mode: +5% of selected nominal voltage Boost mode: -5% of selected nominal voltage Enhanced Boost: -12.5% of selected nominal voltage
Surge Protection	324 Joules

2.Output

	110V Models	220V Models
Output Voltage	100/110/115/120V Selectable	200/220/230/240v Selectable
Waveform	Sine wave
Crest Factor	3:1
Output Frequency	Auto Select for 50/60Hz 47Hz ~ 55Hz for 50Hz nominal; 56Hz ~ 65Hz for 60Hz nominal
Regulation (Nominal)	±10% typical of normal voltage (optional at ±8% AVR for wide I/P up to ±35%)
Regulation (Battery mode)	±3% of selected output voltage (adjustable with the remote set-up software)
Transfer time	Typical: 5ms (Including detection time)
Over current protection	Over load alarm level 100% ~ 120%; Over load shutdown level 120% ~ 190% (Adjustable by using the remote set-up software)

Battery type	Sealed ,maintenance-free lead acid
Voltage	300W-1000W : DC12V
Typical backup time	Depend on external battery
Charging method	Smart pulse charging with two charging modes: Quick charging when battery is not fully charged, trickle charging when battery is 90% fully charged.
charging current	10A for 300w-1000w, at normal line and normal temperature
Average charging voltage for each battery	Quick charging mode:14V maximum: Trickle charging mode:13.2V ~ 13.9V adjustable with the remote set-up software.
Protection	Discharge, overcharge, and overload protection

3.Communications & Management

Control panel	LCD : UPS status, I/P&O/P Voltage Frequency, Load , Battery Voltage , Temperature, Model LED: Normal (Green), Warning (Yellow), Fault (Red)
Audible alarm	Battery Mode : Beeping every 4 seconds Low Battery : Beeping every second Overload : Beeping twice per second
Cooling fan control	Auto on / off, controlled by temperature & operation mode

Operating Temperature	Up to 1500 meters:0℃ to 40℃ (32℉ to 104℉)
Transit/storage Temperature	-20℃ to 55℃
Relative Humidity	0 - 95% non condensing
Operating Altitude	0 ~ 3000 meters
Audible noise	≦55 dBA at 1M
Safety Markings	CE/FCC
EMC	Class B, EN50091-2, FCC part15, IEC1000-2-2
Isolation	1.5KVac for 1 minute between battery and AC side
Quality control system	ISO 9001

4.Physical

Size (H×D×W) Unit / Shipping	375mm* 130mm*190mm
Weight: Net / Gross (kg)	7/7.5 (kg)	7.8/8.3 (kg)	9/9.5 (kg)	10.5/11 (kg)	12.5/13 (kg)	13.5 (kg)
Packing	standard export package ;Neutral packing
