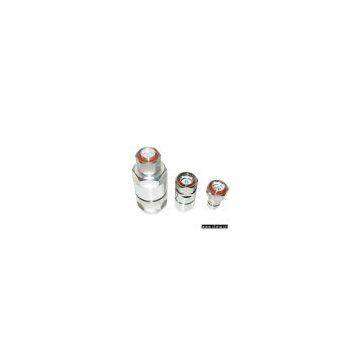

Sell DIN (7/16)/N Series RF Connector

Model No.:RF Connector
Product Origin:China
Brand Name:JQG
Price Terms:FOB, CIF
Payment Terms:T/T, L/C
Certification:ISO9001
Description:Features: 1) Impedance: 50Ω 2) VSWR: 0 - 2GHz ≤1.1 3) RF leakage: DIN ≤-128dB (at 1GHz), N ≤-90dB (23GHz) 4) Withstanding voltage: DIN 4,000V 50Hz; N 2,500V 50Hz 5) Working voltage: ≤1,000V 50Hz 6) Insulation resistance: DIN ≤10,000mΩ, N ≤5,000mΩ 7) Contact resistance a) Inner contact: ≤0.8mΩ b) Outer contact: ≤1.5mΩ 8) Operating temperature range: -40 ~ +85°C 9) Storage temperature range: -40 ~ +85°C 10) Humidity: ≤95% 11) Durability (times/coupling): ≤500 12) Shock: 300m/s, ≤0.56N 13) N center conductor withdrawal force: ≤0.56N 14) N center conductor withdrawal force: (max. coupling) 30 / 60 / 100 / 250 / 500 15) Connector with coupling nut: torque 1N.m / 2N.m / 3N.m / 4N.m / 5N.m 16) DIN male connector (for 7/8" standard cable) 17) DIN female connector (for 7/8" standard cable) 18) DIN female connector (for 11/8" standard cable) 19) DIN female connector (for 15/8" standard cable) 20) DIN male connector (for 1/2" standard cable) 21) DIN female connector (for 1/2" standard cable) 22) DIN male connector (for 1/2" flexible cable) 23) DIN female connector (for 1/2" flexible cable) 24) DIN male right angle connector (for 1/2" flexible cable) 25) N male connector (for 1/2" standard cable) 26) N female connector (for 1/2" standard cable) 27) N male connector (for 1/2" flexible cable) 28) N female connector (for 1/2" flexible cable) 29) N male connector (for 7/8" standard cable) 30) N female connector (for 7/8" standard cable) 31) Adapter DIN M-N M 32) Adapter DIN F-N M 33) Adapter N M-N F Packing: Write box packing
