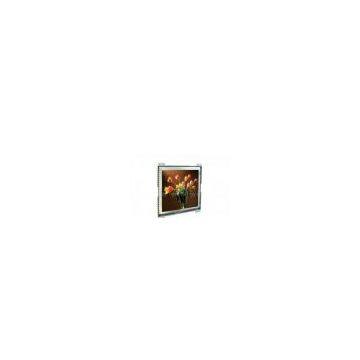

10.4Inch Amogo 800 x 600 Pixels AC 100~240V 8.3V Small Touch Screen TFT LCD Monitor
|
Model Name |
AMG-10OPLC03T1 |
|
Viewable Size Image |
10.4\" |
|
Active Display Area (mm) |
211.2 (H)x158.4(V) |
|
Pixel Pitch (mm) |
0.264(H)x0.264V) |
|
Number of Pixels |
800 x 600 |
|
Contrast Ratio |
500:1 |
|
Display Color |
262, 144(6 bit + FRC) |
|
Brightness (CD/m^2) |
230 CD/m^2 |
|
Viewing Angle (CR >=10) |
120/100 |
|
Synchronization Range |
20~75Hz |
|
Recommended Resolution |
800x600@60Hz, 75Hz |
|
Signal Connector |
20 pin D-sub |
|
Power Source |
AC 100~240V, Universal, ±10% |
|
Power Consumption |
2.52W typical, normal operation |
|
Power Management |
VESA DPMS Compliant |
|
Plug & Play |
VESA DDC 1/2B |
|
Optional Video Input |
No |
|
Optional DVI Input |
No |
|
Optional Touch Screen |
SAW |
|
Remarkes: AMG-10OP serles=VGA input only |
