North-Seeker

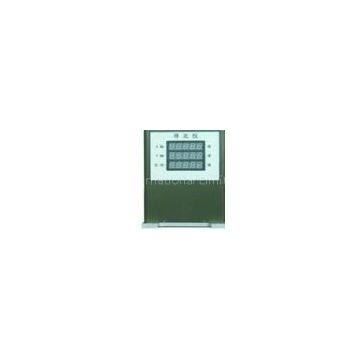

ET-2B North-seeker mainly constitutes by a high accuracy tuning gyro of biaxial power and two accelerometers. By measuring X Y axis weight of the Earth's rotation speed, determines the true north. It is insensitive to magnetic fields and other environmental factors. Combine with the two axial accelerometers, can measure and calibrate the tilt angle

1.   Specifications

 2.Output data format

Digital output        RS232

Baud rate               9600

Data format           1 start, 8date, 1 stop, no parity

X tilt angle        double byte, 16 base complement data    1bit= 0.01ì

Y tilt angle        double byte, 16 base complement data    1bit= 0.01ì

Azimuth            double byte, 16 original code data        1bit= 0.01ì

Checksum         Single-byte, which is the sum of 2 ~7 bytes3. Pin definition

 3. Pin definition

1)     Power input

2)     Power ground

3)     RS232 TX

4)     RS232 RX

5)     Signal ground

6)     Control

7)     Control ground

Other pins do not connect
