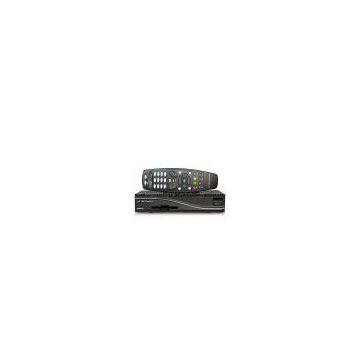

STB 500 HD Set Top Box 500HD DVB-S2 Tuner Receiver

STB 500 HD Set Top Box 500HD DVB-S2 Tuner Receiver thumbnail-1
STB 500 HD Set Top Box 500HD DVB-S2 Tuner Receiver photo-1
US$ 147 - 147 MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
DM 500 HD
Contact Supplier Request Quote Chat Now
Shenzhen Kexun Digital Technology Co.ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number DM 500 HD
  • 400 MHz MIPS processor
  • Linux Operating System
  • 2 x LED - display
  • MPEG-2 / H.264 Hardware decoding
  • Tuner: DVB-S2
  • 1 x Smart Card Reader (Dreamcrypt CA)
  • Service Mini-USB
  • 10/100Mbit Ethernet Interface
  • 1 x Scart (RGB, FBAS or S-Video)
  • HDMI
  • 2 x USB 2.0
  • analog modem
  • S/PDIF Interface for digital bit stream out (AC-3)
  • 64 MByte Flash, 256 MByte RAM
  • unlimited channel lists for TV/Radio
  • channel-change time < 1 second
  • automatic service scan
  • directly bouquet-lists
  • EPG (electronic program guide)
  • multiple LNB-Switching control (supports DiSEqC)
  • OSD in many languages and skin-support
  • Teletext Decoder
  • External 12V power supply


Technical Data
DBS-Tuner DVB-S2:

  • Frequency Range: 950-2150 MHz
  • Demodulation: DVB-S (QPSK) / DVB-S2 (8PSK,QPSK)
  • Symbol rate DVB-S: 2-45 Mbaud/s, SCPC / MCPC
  • DVB-S2: 10-31 Mbaud/s (8PSK), 10-30 Mbaud/s (QPSK)


Video decoder:

  • Video Compression MPEG-2 and MPEG-1 compatible, H.246
  • Video Formats 4:3 / 16:9
  • Letterbox for 4:3 TV-Device


Audio decoder:

  • Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
  • Audio Mode Dual (main/sub), Stereo
  • Frequency: 32kHz, 44.1kHz, 48kHz, 16kHz, 22.05kHz, 24kHz


Output analog:

  • Output Level L/R 0,5 Vss on 600 Ohm
  • THD > 60 dB (1 kHz)
  • Crosstalk < -65 dB


Output digital:

  • Output Level 0,5 Vss on 75 Ohm
  • Sampled Data Filtering 32kHz, 44.1kHz, 48kHz
  • S/PDIF-Output optical, Toslink


Video output:

  • Output Level 1 Vpp + / - 0.3 dB on 75 Ohm


Video parameter:

  • Input Level FBAS 1 Vss 0.3 dB on 75 Ohm
  • Teletext filter in conformity with ETS 300 472 Standard


TV-Scart:

  • Output: FBAS, RGB, S-Video


Ethernet:

  • 10/100 MBit compatible interface
  • Function: Update of Firmware


Analoge modem:

  • analoge modem for Internet connection


LNB power and polarisation pertuner:

  • LNB Current 500mA max.; short-circuit-protected
  • LNB Voltage vertical < 14V no load, > 11,5V at 400mA
  • LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
  • LNB shut-off in standby mode


Number of active satellite position:

  • DiSEqC 1.0/1.1/1.2 and USALS - Rotor Control


Power consumption:

  • < 12W at 12V operation
  • < 1W Standby


External power supply:

  • Input:110-240V AC / 50-60Hz / 0,6A
  • Output:12V = / 3,0A


Physical specification:

  • Ambient Temperature:+15 ° C to  +35 ° C
  • Humidity: < 80%
  • Dimensions (W x D x H): 195 mm x 130 mm x 40 mm
