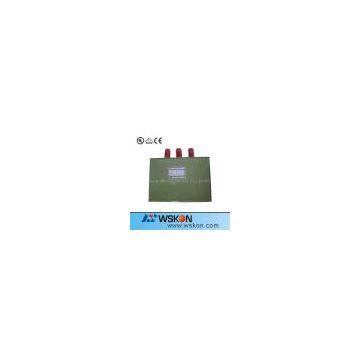

Square Capacitor

Feartures:

    1,Small volume,light weight:It is only 1/4and 1/5 of the weight and volume of the outdated products resdeotively.

    2,Low loss:With the actual loss than 0.1,little radiation,low temperature rise,and good energy conservation effect.

    3,Excellent self-healing performance:when a part of the isolation is fed through due to the over voltage,it is capable of self-healing so as to continue the operation, therefore the reliability is improve greatly.

    4,Without oil leakage:this product adoped advanced half-solid soak materials drips meltingpoint higher than 70°C,avoid leakage during operation and protect the environment.

Technical parameter:

    Rated voltage:250VAC 400VAC 450VAC 525VAC 690VAC

    Capacitance tolerance:-5~10%

    Tangent of the loss angle:≤0.15%

    With stand voltage of case between phase:2.15Un.2s

    Max allowable voltage:Rated voltage 110%

    Max allowable current:Rated voltage 130%

service condition:

1,Use in door

2,Humidity RH:<85%

3,Altitude:<2,000m
