Steel Grating
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Juner | Place of Origin | China | |
Product Description

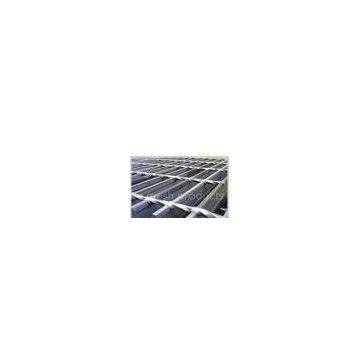

Steel Grating
Material: Carbon steel or Stainless steel
Characteristics: High strength and light structure-film mush welding structure endows it with the characteristics of high load bearing, light structure and convenience for lifting; Handsome appearance and durable-hot galvanizing surface treatment makes it possess good antiseptic power and glossy and handsome surface. Beside, it have good properties of vantilation, light, heat elimination, explosion proof and anti skid.
Assortment: Galvanized steel grating, hot galvanized grating, electric galvanized steel grating
Usage: Widely used in oil refinery, iron and steel work, chemical plants, power plants, medicine plants, machneries mills, paper mills, cement mills, for uses of gangway and platform for pump rooms or engine rooms in various ships, flooring in various bridges such as railway bridge sidewalks, platform for oil extraction sites, car washing sites and air towers. We are able to supply all standard sizes and also can design and produce according to your drawing and requirements.
| GALVANISED TRANSVERSE TRENCH GRATING |
| A | B | ||||
| Product | Grate | Grate | Load Bars | Edge Bar | Cross Bar |
| Code | Width mm | Depth mm | Size | Size | Size |
| GG150 | 150 | 20 | 20 x 5 @ 40mm c/c | 20 x 5 | 6mm @ 100 c/c |
| GG230 | 230 | 25 | 25 x 5 @ 40mm c/c | 25 x 5 | 6mm @ 100 c/c |
| GG300 | 300 | 25 | 25 x 5 @ 40mm c/c | 25 x 5 | 6mm @ 100 c/c |
| GG210HD | 210 | 32 | 32 x 5 @ 30mm c/c | 32 x 5 | 6mm @ 100 c/c |
| GG310HD | 310 | 40 | 40 x 5 @ 30mm c/c | 40 x 5 | 6mm @ 100 c/c |
| GG380HD | 380 | 40 | 40 x 5 @ 30mm c/c | 40 x 5 | 6mm @ 100 c/c |
| GALVANISED STORMWATER PIT GRATING |
| Product | Grate | Grate | Load Bars | Edge Bar | Cross Bar |
| Code | Width mm | Length mm | Size | Size | Size |
| SPG4L | 540 | 540 | 25 x 5 @ 40mm c/c | 50 x 5 | 6mm @ 100 c/c |
| SPG4H | 540 | 540 | 50 x 5 @ 40mm c/c | 50 x 5 | 6mm @ 100 c/c |
| SPG6L | 690 | 690 | 25 x 5 @ 40mm c/c | 50 x 5 | 6mm @ 100 c/c |
| SPG6H | 690 | 690 | 50 x 5 @ 40mm c/c | 50 x 5 | 6mm @ 100 c/c |
| SPG96L | 690 | 990 | 25 x 5 @ 40mm c/c | 50 x 5 | 6mm @ 100 c/c |
| SPG96H | 690 | 990 | 50 x 5 @ 40mm c/c | 50 x 5 | 6mm @ 100 c/c |
| SPG9L | 690 | 990 | 25 x 5 @ 40mm c/c | 50 x 5 | 6mm @ 100 c/c |
| SPG9H | 990 | 990 | 50 x 5 @ 40mm c/c | 50 x 5 | 6mm @ 100 c/c |
| SPG12L | 1290 | 645 | 25 x 5 @ 30mm c/c | 50 x 5 | 6mm @ 100 c/c |
| SPG12H | 1290 | 645 | 50 x 5 @ 30mm c/c | 50 x 5 | 6mm @ 100 c/c |
