Home > Products > Security Gate Barrier > Adjustable Swing Arm Barriers With Self Examine & Alarm Dry Contact Signal for Supermarket

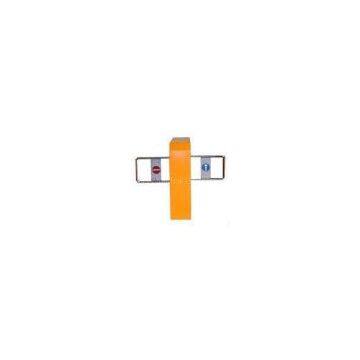

Adjustable Swing Arm Barriers With Self Examine & Alarm Dry Contact Signal for Supermarket
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Efficient Swing Arm Barriers With Automate Prolong Time Set for Indoor, Outdoor
-
Manual Swing Arm Barrier With Bar Code, Fingerprint & Keyboard Control for Subway, Mension
-
Outdoor Security Turnstile Gate 240V With Automate Reset Functio for Swimming Club
-
RS485 Security Turnstile Gate 120v With Dry Contact Signal for Institution
-
RS485 Swing Arm Barriers Compatible With Card Reader, Fingerprint for Subway, Marketplace
-
Rustproof Security Turnstile Gate With IC, Fingerprint Control for View Spot, Exhibition
Product Details
Brand Name | Yuan | Place of Origin | China | |
Model Number | YAT6608D |
Product Description
Adjustable swing arm barriers with self examine & alarm dry contact signal for supermarket
Intelligent swing barrier is intelligent access management device which is produced by our company after many years’research and development. And it is a high-tech product aimed at access intelligentized management. The product, integrating with mechanism, electron, microprocessor and various identification technology, by configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator and well-extended LED counting display, is able to achieve acess intelligentized control and management. . Intelligent swing barrier being compatible with such card reader devices as IC card, ID card, bar code, fingerprint is able to effectively manage the entrance and exit and provide people with civilized, orderly transit manner.
Application:
It could be widely used in the place where intelligentized management is needed such as station, port, supermarket, subway, factory, mansion, intelligent community, hotel, club, marketplace, enterprise and institution etc.
Advantages:
1. With function of self-examine and alarm, it is convenient for maintenance and use.
2. Being able to program running status by the SET keyboard in the main board
3. Swing arm stops moving when it is blocked, which prevents pedestrians from being nipped and from hurt
4. Arms are automatically locked until opening signal is received.
Arms synchronization (adjustable)
5. Automatically reset function: It will automatically lock if the pedestrian hasnt pass through the channel in the pre-set time after the opening. The passing time is adjustable.
6. Unit can be adjusted permanent open or close when power off to meet different requirement.
7. Several card readers are attachable, and relay singals can be received.
One direction or bi-direction are optional
8. It can be directly controlled and managed by remote computer
Automatic prolong time reset, the default time is 10seconds
9. The swing barrier automatically opens after power off and automatically closes when power on, which accords with fire-fighting.
Specifictions:
Technical parameters |
|
Housing material |
304 stainless steel |
Dimension |
L1200*W280*H1000mm |
Arm length |
600-900mm |
Weight |
75Kg |
Power |
24V DC |
Voltage |
220V, 230V, 240V, 110V, 120V |
Frenquency |
50/60Hz |
Communication interface |
RS485 |
Input interface |
Dry contact signal/12V signal/DC 12V |
Normal life-span |
3 million |
Transit speed |
40 persons/min |
Working environment |
Indoor/outdoor |
Temperature |
-10 to 50 |
Relative humidity |
≤90% no condensation |
