US$ 8 - 8
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
CHAHUA
Place of Origin:
China
Model Number:
CS500B
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
CHAHUA
Place of Origin
China
Model Number
CS500B

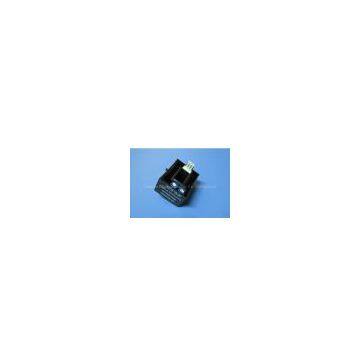

The CS500B series current sensor is a open loop device based on the measuring principle
of the hall effect ,with a galvanic isolation between primary and secondary circuit.it provides
accurate electronic measurement of DC,AC or pulsed currents
| Tapy | CS050B | CS100B | CS200B | CS300B | CS400B | CS500B | CS600B | ||
| IPN | Rated current(rms) | 50 | 100 | 200 | 300 | 400 | 500 | 600 | A |
| IP | Measuring range | 100 | 200 | 400 | 600 | 800 | 900 | 900 | A |
| VSN | Rated output | 4 | V | ||||||
| VC | Supply voltage | ±12~±15(±5%) | V | ||||||
| IC | Current sumption | 25 | mA | ||||||
| Vd | Galvanic isolation | 2.5KV/50Hz/1min | |||||||
| εL | Linearity | ≤1 | %FS | ||||||
| X | Accuracy | ≤1 | % | ||||||
| V0 | Offset voltage | TA =25℃ ≤±20 | mV | ||||||
| VOM | Magnetic offset voltage | IPN→0 ≤±20 | mV | ||||||
| VOT | Offset voltage drift | IP=0 TA =–25~+85℃ ≤±1 | mV/℃ | ||||||
| Tr | Response time | ≤3 | ≤5 | ≤7 | μs | ||||
| f | Bandwidth(-3dB) | DC~20 | kHz | ||||||
| TA | Operating temperature | –25~+85 | ℃ | ||||||
| TS | Storage temperature | –40~+100 | ℃ | ||||||
| RL | Load resistance | TA =25℃ ≥10K | Ω | ||||||
