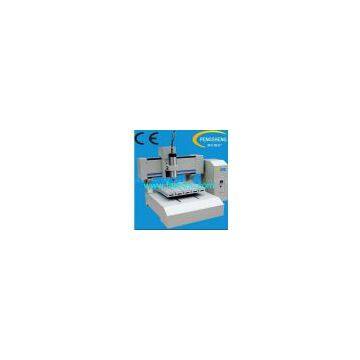

Feature:
1. Whole cast by aluminum.
2. Adopt 1.5KW China domestic made water cooling spindle.
3. Three axes adopt imported ball screw and cirle orbit,stable working,high precision and long life time.
4. X axis is dustproof.It makes sure the steady working performance of the machine for long-term using.
5. Well compatibility:CAD/CAM designing software e.g.
Type3/Artcam/Castmate/ucancam etc.
6. It has the function of forecasting process time.
7. The most advantage of the machine is the gantry is fixed,but the working table can move,it can be ensure the high accuracy.
Technical Parameter:
|
Model |
PC-3030 |
|
X.Y working area |
300mm*300mm |
|
Z working area |
60mm |
|
Table size |
500mm*500mm |
|
Resolution |
0.01mm |
|
X,Y,Z structure |
Imported ball screw |
|
Max speed |
|
|
Spindle power |
1.5KW |
|
Spindle rotating speed |
0-24000r/min |
|
Cooling mode |
Water cooling |
|
Working voltage |
AC220V/50/60 Hz ,2PH |
|
Drive Motor |
Stepper |
|
Command |
G code*.u00*.mmg*plt |
|
Operating system |
NC Studio |
|
Diameter of cutter |
3.175-8 |
|
Work-holding |
By clamp |
Applicable industries:
This machine can be used for Stone, Brass and AL Processing, mold manufacturing, wood processing, craft manufacturing, indoor decoration cutting, sign and mark manufacturing, acrylic board processing, as well as stamp and PCB drilling.
Applicable industries:
Wood,plastic,PVC,PCB board,MDF,Artificial Stone,Acrylic,etc
