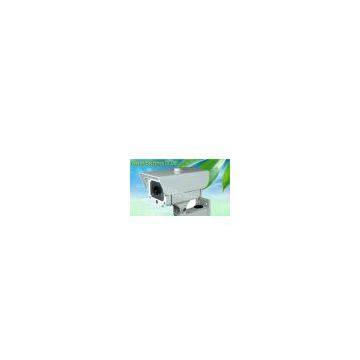

CDS Auto Control Waterproof Infrared Camera of 48dB ( AGC OFF ) S / N Ratio

Model

VC25E11

VC25E10

VC25E9

VC25E7

VC25E5

VC25E4

VC25E1

Image Sensor

1/3' SONY CCD

1/3' SONY CCD

1/3' SONY CCD

1/3' SONY CCD

1/3' SONY CCD

1/3' SONY CCD

1/4' SHARP CCD

Horizontal Resolution

Effio 700TV Lines         Low Illumination, OSD, ATR, 2D-NR

Effio 650TV Lines   Low Illumination, DWDR, OSD

600TV Lines   Low Illumination

540TV Lines      Low Illumination

480TV Lines

420TV Lines

Pixels

PAL:976 (H)× 494(V)       NTSC :976 (H) ×582 (V)

                   PAL:795 (H)× 596(V)                 NTSC :811 (H) ×508 (V)

                PAL:752(H)×582(V),               NTSC:768(H)×494(V)

            PAL:500(H)×582(V)        NTSC:510(H)×492(V)

TV System

PAL/NTSC

IR LED

￠5 X 30 PCS

IR Series Distance

25M

Lens

6mm Lens(3.6mm Optional)

Sync System

Internal

IR Status

Under 10 Lux By CDS

Usable Illumination

0.001Lux/F2.0

0.0005Lux/F2.0

0.01Lux/F2.0

IR Power On

CDS Auto Control

S/N Ratio

≥65dB (AGC OFF)

≥54dB (AGC OFF)

≥48dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation  Temperature

-10℃ ~ +50℃ RH95% Max

Storage  Temperature

-20℃ ~ +60℃ RH95% Max

White Balance

Auto

Power Source

DC12V 750mA

Dimension
