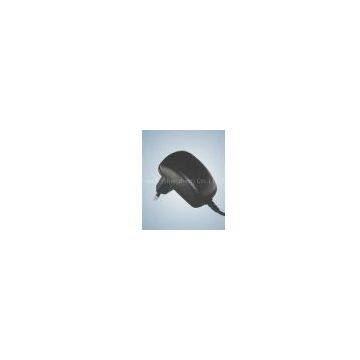

1W High Power Density 0.15A AC DC Switching Power Supply

Input

●Input Voltage:   90 to 264 VAC

●Frequency  :     47-50/60-63hz

●Input current :   0.15A(Max) 100 /240VAC

●Inrush current : 50AMax. 120VAC at max Load

●Leakage current : 0.25 mA Max

Output

●Over voltage protection

●Over current protection

  at 110-200% of lo and Auto-recovery

●Electronic short circuit protection

●Ripple&noise 20MHz bandwidth: 200mV

●Efficiency 52.9% Measured at 25℃

●Operating temperature 0~40℃free convection

●Sea level Non-operating temperature-20~80℃

●Operating humidity 10-90% RH NonCondensing

Safety standards

●Information technology equipment

●EN60950

Certificates and approvals

 ●Test report for IEC 60950-1

EMI Emission

●FCC Part 15 Class B

●EN55022 class B EN55024 Class B

●AS/NZS CISPR 22

EMS immunity

●ESD   Test:EN 61000-4-2

●RS     Test:EN 61000-4-3

●EFT    Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS      Test:EN 61000-4-6

●DIP     Test:EN 61000-4-11
