Supply Polyimide Film

Supply Polyimide Film thumbnail-1
Supply Polyimide Film thumbnail-2
Supply Polyimide Film thumbnail-3
Supply Polyimide Film photo-1

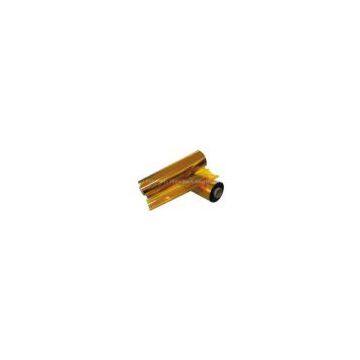

Supply Polyimide Film photo-2

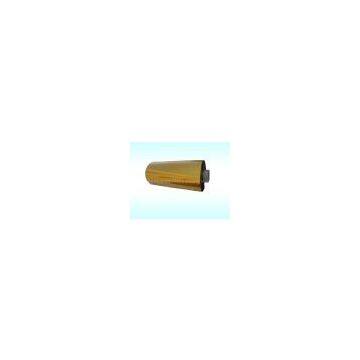

Supply Polyimide Film photo-3
US$ 40 - 40 MOQ: 100 Meters
Key Specifications
Get Latest Price
Brand Name:
NCPI
Place of Origin:
China
Model Number:
6051 (kapton HN)
Contact Supplier Request Quote Chat Now
New Century (Tianjin) Polyimide Films Insulating Materials Co., LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NCPI
Place of Origin China
Model Number 6051 (kapton HN)

Standard number: 2006 GB/T13542.6-2006
Application range: The polyimide film is to be produced by cast method, which has High temperature resistance, resistance to radiation and excellent dielectric properties, applicable to electrical insulating of the class H electric motor and other electrical equipments , and other use electrical insulating materials.



A. Technical requirements


1. Appearance: Film surface is bright and clean, not due, tear, particle, bubbles,
Pinhole and foreign material defects ;Edge is tidy, without damage; Films supply in rolls.
2. Size
2.1. Thickness and allowable deviation:

The standard thickness(um)

12.5

25

40

50

75

100

125

175

200

The allowable deviation(um)

+1

+2

+2

+2

+3

+4

+4

+5

+5

-1

-1

-2

-2

-3

-3

-4

-5

-5

Note: Supplying according to customer request with thickness 12.5-22.5 um, allowable deviation can be negotiated by both sides.
2.2. Width: no less than 250 mm, deviation 1.6mm. According to the needs of the users, tape can be cut with different specifications.
2.3. Length: Supplying according to the requirement of customer.
2.4. Performance requirements

Serial number

Index name

Unit

Index

25um

40um

50um

75um

100um

1

density

Kg/m³

1425±10

2

tensile strength

horizontally

Mpa

≥165

vertically

3

elongations

horizontally and vertically

%

≥40

≥50

4

shrinkage rate horizontally

and vertically 150℃ 400℃

%

≤0.35                                       ≤2.5

5

industrial frequency electric strength

48H2~62H2

v/um

≥240

≥200

≥180

≥160

6

surface resistance,200℃

Ω

≥1.0X1014

7

Volume resistance,200℃

Ω.M

≥1.0X1010

8

Relative permittivity

48~62Hz

-

3.5±0.4

9

dielectric power factor

48~62Hz

-

≤4.0X103

10

long-term heat resistance temperature index

-

≥180




B. Packaging, Marks, Storage and Transport
1. Film should be wrapped in a tube on core and supply in rolls;  Each volume in a plastic bag packing and seal, placing in dry and clean case
2. Each box packaging should specify model or type, product name, specification, batch number, gross weight, net weight, manufacturing date, manufacture’s name, and product test report. At the same time, marked "Moisture proof" "Prevent Impact" and other words in packing body.
3.Film should be stored in a dry and clean indoor, from the date of original shipment, shelf life for two years, more than storage life according to the standard check again, qualified can still use.
4. In storage and transport process, should avoid damp and mechanical damage.
