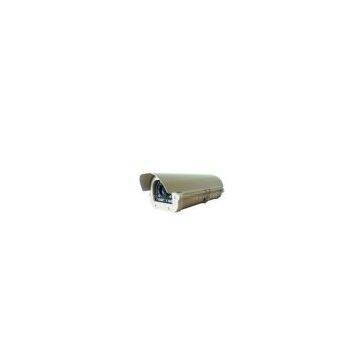

Outdoor 3G 18x Optical Zoom IR Night Vision HD CCD IP Camera

Delivery Time:300 sets will be delivered in 3 days
Certification:QC,CE

Outdoor 3G 18x Optical Zoom IR Night Vision HD CCD IP Camera

Designed with 2 mega COMS sensor and high-performance multimedia processor: Hi3512, based on embeded Linux OS, our IP cameras support H.264 Main Profile video coding and G.726/G.711 audio coding, with megapixel video resolution, support SD card snapshot pictures storage, support RTSP protocol. This kind of IP camera is ideal solution for security & surveillance field, including office room, super market , highway , airport and so on.

CPU :Hi3512, Support H.264 Main Profile video coding Sensor: CCD 18X optical zoom Support Dual video stream synchronous transmission Support Mobile monitoring and PTZ control Support EVDO/WCDMA/TD-SCDMA 3G network(Optional) Support WIFI/802．11b/g wireless network(Optional) Build-in SD card slot, support up to 64G SD card, can save pictures and clips in SD card, support pre-recording for alarm-recording mode. Support two-way voice intercom Support sending email, attaching picture Support DHCP Support DDNS Support Motion-Detection(multiple regions and sensitivity can be set) and sensor alarm Support remote alarm linkage, multiple alarm time can be set Build-in RS485/RS232 port and multiple PTZ protocol Support recording and snapshot in PC through live video Support up to 10 users browsing at the same time Clock time keep working after power failure, support NTP Support abnormal automaticly recovery, Network can be automatically re-connected after interruption Support multiple network protocol, such as TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP and so on Only 1 network port is used for IE Browsing, stream transmiting and command access, convenient for router setting Support UPNP Provide Client software for PC, to view and control multiple site Can provide CMS (charge needed)

Processor	HI3512
OS	Embeded Linux
Video Codec	H.264 main profile level 3
Audio Codec	G.726/G.711/AMR
Image Performance	HITACHI1.3 Megapixel, 1/3 CCD
Video Performance	Brightness, contrast, saturation can be adjusted
Zoom times	18X optical
Auto Iris	Support
Auto Focus	Support
Min Illumination	1.8Lux (IR off)0 Lux(IR on)
IR Distance	50M
Video Resolution	Main stream:1280x720
	Sub stream:320x240
Video Frame Rate	Main stream:1~25fps
	Sub stream:1~25fps
Video Compression	32Kbits/S～4Mbits/S
Audio Input	1ch Line/MIC
Audio Output	1ch Line Out
Alarm I/O	1ch Input, 1ch Output, 120VAC 1A/24VDC 1A
Motion Detection	At most 4 respective regions.
PTZ Interface	1ch RS485
SD Card	At most 64G, recording and snapshot
Network Protocol	TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP and so on
Network Interface	10Base-T/100Base-TX Ethernet interface；
	WiFi 802.11b/g (Optional)
