2, 17"/19" SAW touchscreen
3, FCC&CE compliance

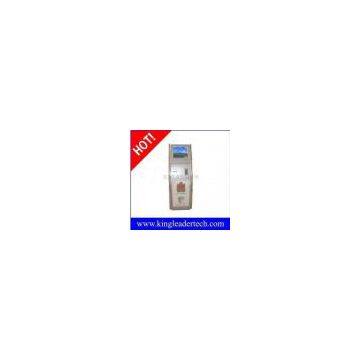

This coin-operated ticketing kiosk is built based on our standard model TSK8011 by integrating an 80mm thermal printer and a coin acceptor
Key Features
- High-sensitivity, high light-transmittance, anti-glare, vandal-proof SAW touchscreen
- 17″, 19″TFT LCD displays for option
- Durable steel enclosure, space-saving and ADA compliant design
- Built-in hi-fi amplified speakers
- Customizable
Applications:
This coin-operated ticketing kiosk is commonly used in public places or facilities where people can make payment and print ticket by inserting coins
|
Technical Specifications |
||
|
TFT LCD Display - Resolution: 1280x1024(17″and 19″) - Brightness: 250~300 nits - Contrast ratio: 450:1 - Response time:8 ms |
Touch Screen - Vandal-proof SAW touch screen - Material: Heat tempered glass with thickness 6mm - Resolution: 4096*4096 - Deviation of error: <2mm - Light Transmittance: ≥ 92% - Surface Hardness: 7 Mohs scale - Lifetime:50, 000, 000 times at one single location - Response time: less than 16 ms - Touch activation force: 10~100g |
Enclosure - Durable steel enclosure (different colors for option) - Built-in power control panel, and hi-fi speakers. - Two cooling fans for computer board and main body separately - RJ45/RJ11 interface - Large access doors with tubular locks/keys |
|
Mother Board - CPU: Intel Pentium dual core E5300 (upgradeable on request) - RAM: 1GB (upgradeable on request) - Hard Disc: 250GB (upgradeable on request) |
Operation System LINUX/Win3.X/98/2000/NT4.0/XP |
Working Voltage AC 220V, 50 Hz or 110V, 60 Hz for option |
|
Ambient Environment - WorkingTemperature -20°C~65°C;RelativeHumidity: 30%~90% - Storage Temperature: -40°C~80°C;Relative Humidity: 5%~95% |
Dimensions - 142(height) x 47(width) x 38(depth)CMs - Packing dimension: 150 x 60 x 46cm |
Peripherals 80mm thermal printer and coin acceptor |
