1/4 Channel PAL Video AutoMobile DVR Recorders with D1 at 100fps Resolution

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Vcomsky		Place of Origin	China
Model Number	VC-MDR6015,VC-MDR6045

Product Description

Delivery Time:300 sets will be delivered in 3 days
Certification:QC,CE

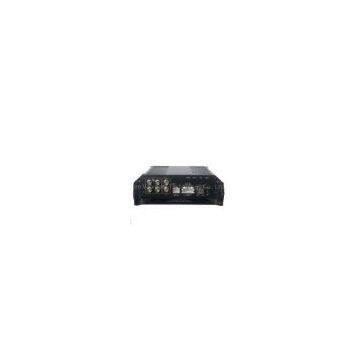

1/4 Channel PAL Video AutoMobile DVR Recorders with D1 at 100fps Resolution

Descriptions

It’s designed to meet demanding security applications such as public transportation, law enforcement and military. This Mobile DVR is mounted on a small, rugged, vibration and shock resistant bracket, allows recorded video to be quickly exported through it’s an extra USB2.0 HDD Reader.

This Mobile DVR supports 1 or 4 channels of video, 1 channels of audio and gives users the option of selecting recording resolutions from CIF(352x288) to D1 (704x576). The removable hard drive stores recorded video and can be removed and connected to a standard PC to view recorded video. It supports GPS function for optional. This mobile solution comes complete with everything required for simple installation.

This mobile solutions are currently being used in the following applications:

Law Enforcement - Patrol Cars Military - Tanks Emergency – Ambulances, Fire Trucks Public – Buses, Trains, Railways, Subways Commercial – Boats, Heavy Equipment, Limousines, Taxis, Vans Transportation - Freight Liners Aviation – Helicopters, Commercial and Private Aircraft

Key Features

Provide Video output forplaying-back mode in main frame. Recording format:D1 and CIF H.264 High Profile video compressionl. Userfriendly player software, easytooperation. The full recording time and date can be showing in the monitordirectly. Support from +8V DC to +32VDC. Applicable for vehicles with +12V or +24V battery.. Auto-run recording afterhard disk plug-in and power supplied. Support schedule recording. Special good anti- vibration performance. Provide 1-4 set of alarm input ports. Firmware can be upgraded via USB port. Support recording audio, video and G-sensor at the same time. GPS for optional.

Specifications

Item	Parameter	Description
System	Language	Chinse Simplified/Chinese Traditional/ English/Japanese /other language could be order
	Interface	Graphical User Interface
	Security	Key protected
Video	Video Input	4 channel video input, 1.0V, p-p, 75Ω, BNC and air connector
	Video Output	1 channel vidoe output, 1.0V, p-p, 75Ω, BNC and air connector
	Display	1/4 channel display
	Video Standard	PAL (25fps)/ NTSC (30fps)
Audio	Audio Input	1 channel audio input, 20KΩ
	Audio Output	1 channel audio output, 500Ω, 1V ~2V, p-p
	Recording mode	Audio and video simultaneously recording
	Compression	AAC
Storage	Video Compression	H.264 High Profile
	Resolution	D1 at 100fps (PAL)/ 120fps (NTSC)
	Video bitrate	D1: 200Kbps ~ 2Mbps, 3 selectable quality
	Audio bitrate	8KB/s(Compressed)
	Storage	2.5 Inch Hard Drive
Alarm	Alarms	4 CH
Communication
