Mini TFT LCD Display 80 mm Thermal Printer Pay Payment Ticketing Kiosk Design

KINGLEADER Technology Company
Mini TFT LCD Display 80 mm Thermal Printer Pay Payment Ticketing Kiosk Design thumbnail-1
Mini TFT LCD Display 80 mm Thermal Printer Pay Payment Ticketing Kiosk Design photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
KINGLEADER
Place of Origin:
China
Model Number:
TSK8006(B3)
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name KINGLEADER
Place of Origin China
Model Number TSK8006(B3)
Delivery Time:Depending on specific order quantity

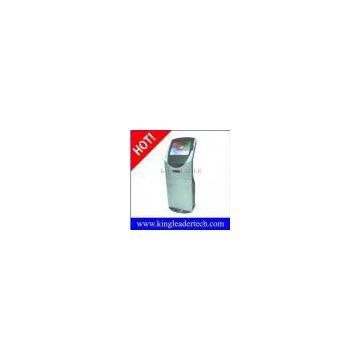

mini TFT LCD Display 80 mm thermal printer Pay Payment ticketing kiosk Design

1, Payment ticketing kiosk with magnetic cardreader and thermal printer
2, 17", 19" SAW touchscreen available
3, OEM&ODM available



This payment ticketing kiosk is built based on our standard model TSK8006 by adding a mini magnetic cardreader and a 80mm thermal printer

Key Features

- High-sensitivity, high light-transmittance, anti-glare, vandal-proof SAW touchscreen

- 17″, 19″TFT LCD displays for option

- Durable steel enclosure, sleek, extra slim,  stylish and ADA compliant design

- Built-in hi-fi amplified speakers

- Customizable

Application

This payment ticketing kiosk is commonly used in public places or facilities where people can print ticket by swiping their bank card through a magnetic cardreader

Technical Specifications

TFT LCD Display

- Resolution: 1280x1024(17″and 19″)

- Brightness: 250~300 nits

- Contrast ratio: 450:1

- Response time:8 ms

Touch Screen

- Vandal-proof SAW touch screen

- Material: Heat tempered glass with thickness 6mm

- Resolution: 4096*4096

- Deviation of error: <2mm

- Light Transmittance: ≥ 92%

- Surface Hardness:  7 Mohs scale

- Lifetime:50, 000, 000 times at one single location

- Response time: less than 16 ms

- Touch activation force: 10~100g

Enclosure

- Durable steel enclosure (different colors for option)

- Built-in power control panel, and hi-fi speakers.

- Two cooling fans for computer board and main body separately

- RJ45/RJ11 interface

- Large access doors with tubular locks/keys

Mother Board

- CPU: Intel Pentium dual core E5300

(upgradeable on request)

- RAM: 1GB (upgradeable on request)

- Hard Disc: 250GB (upgradeable on

request)

Operation System

LINUX/Win3.X/98/2000/NT4.0/XP

Working Voltage

AC 220V, 50 Hz or 110V, 60 Hz for option

Ambient Environment

- WorkingTemperature

-20°C~65°C;RelativeHumidity: 30%~90%

- Storage Temperature:

-40°C~80°C;Relative Humidity: 5%~95%

Dimensions

- 138(height) x 52(width) x 28(depth) CMs

-  Packing dimension: 150 x 60 x 46cm

Peripherals

Mini magnetic cardreader and 80mm thermal printer
